Single-Chamber Fully PTFE Photoelectrochemical Cell (Relatively Sealed, Bracket Type)

Name: Single-Chamber Fully PTFE Photoelectrochemical Cell (Relatively Sealed, Bracket Type)
Brand: Canrd
Price: 377.55 USD
Availability: InStock

$377.55

item_NoSpecificationsPrice

MA-EN-BE-006101C026-3(50ml)$377.55

MA-EN-BE-006102C026-3(100ml)$377.55

MA-EN-BE-006103C026-3(150ml)$468.16

MA-EN-BE-006104C026-3(200ml)$619.18

MA-EN-BE-006105C026-3(250ml)$860.82

MA-EN-BE-006106C026-3(500ml)$1162.86

✓ Selected: MA-EN-BE-006101 / C026-3(50ml)

Quantity

Quality Assurance

Factory Direct

Global Shipping

Details

Product Description & Recommendations

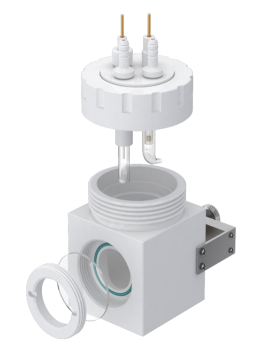

The cell window is made of quartz glass with light transmittance over 95%.
Non-standard sample wafers can be adopted as the working electrode, provided that the fixed-area hole is fully covered.
The standard fixed reaction area is 1 cm², and customized sizes are available.
Tighten the rear screw to push against the working sample wafer; the working electrode compresses the fixed-area hole to realize cell sealing.
The standard fixed reaction area is 1 cm², and customization is supported upon request.
Counter electrodes and reference electrodes can be configured as required. The matched electrode rods have a diameter of 6 mm and all adopt extended type.
Widely applied in three-electrode test systems. The cell volume ranges from 30 mL to 500 mL with customizable volumes available.
The inner core of the lid is made of 360° rotatable PTFE to align electrodes with channels precisely (electrodes are generally parallel to the optical window). Sealing is completed by tightening the outer PTFE lid.
Sealing screws compress O-rings to achieve tight sealing for electrode assemblies.
Equipped with an underwater aeration device to adjust gas atmosphere for different experimental tests.
