Silicon carbon negative electrode 1800 (porous carbon deposited silicon) - A

Silicon carbon negative electrode 1800 (porous carbon deposited silicon) - A

$151.02
Model:
MA-EN-AN-0034
item_No
Specifications
Price
MA-EN-AN-003401
20g
$151.02

Details

This product is a silicon-carbon composite anode material developed for advanced lithium-ion battery research, featuring a porous carbon skeleton deposited with silicon. Designed for experimental and energy material applications, it requires vacuum-sealed storage to maintain stability. During electrochemical testing, the manufacturer recommends using a dedicated silicon-carbon electrolyte (KLD-Si01) and baking the electrode at 85 °C for 4 hours. The material’s porous architecture supports high silicon loading and accommodates volume changes during cycling, making it suitable for half-cell evaluations and anode performance studies. With multiple batch sizes available, it serves as a consistent reference for researchers investigating high-capacity anode systems.

The material needs to be vacuum sealed for storage

The electrolyte used during testing is silicon carbon electrolyte (KLD-Si01)

Baking conditions for polarizer: Bake at 85 ℃ for 4 hours

Lithium ion anode electrode material, porous carbon skeleton

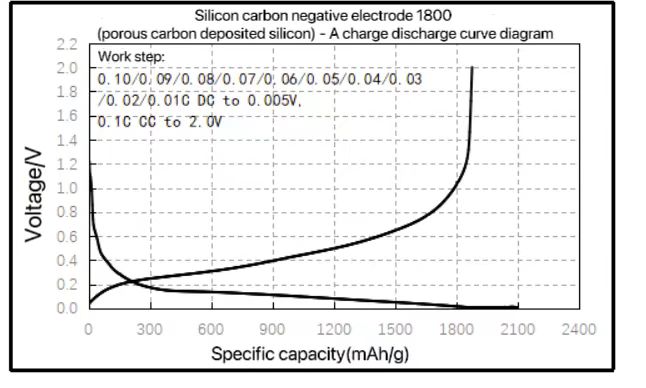

Half battery test:

SEM
