Product Description & Specifications

Model: C015-1

• The cell body is fully quartz with fusion welding construction, no adhesive glue applied.
• Light transmittance of quartz material is higher than 95%.
• The cover is made of PTFE (Polytetrafluoroethylene).
• Optional gas inlet and outlet assembly is available.
• Electrodes need to be purchased separately.
• The working electrode can be customized to 3 mm gold disk, platinum disk or other types upon request.
• It is designed as a semi-sealed system.
• The quartz sealing section adopts an internal thread structure; sealing is realized by tightening the PTFE cover.
• Electrode sealing is completed on PTFE stoppers, relying on sealing screws to compress O-rings for airtight performance.

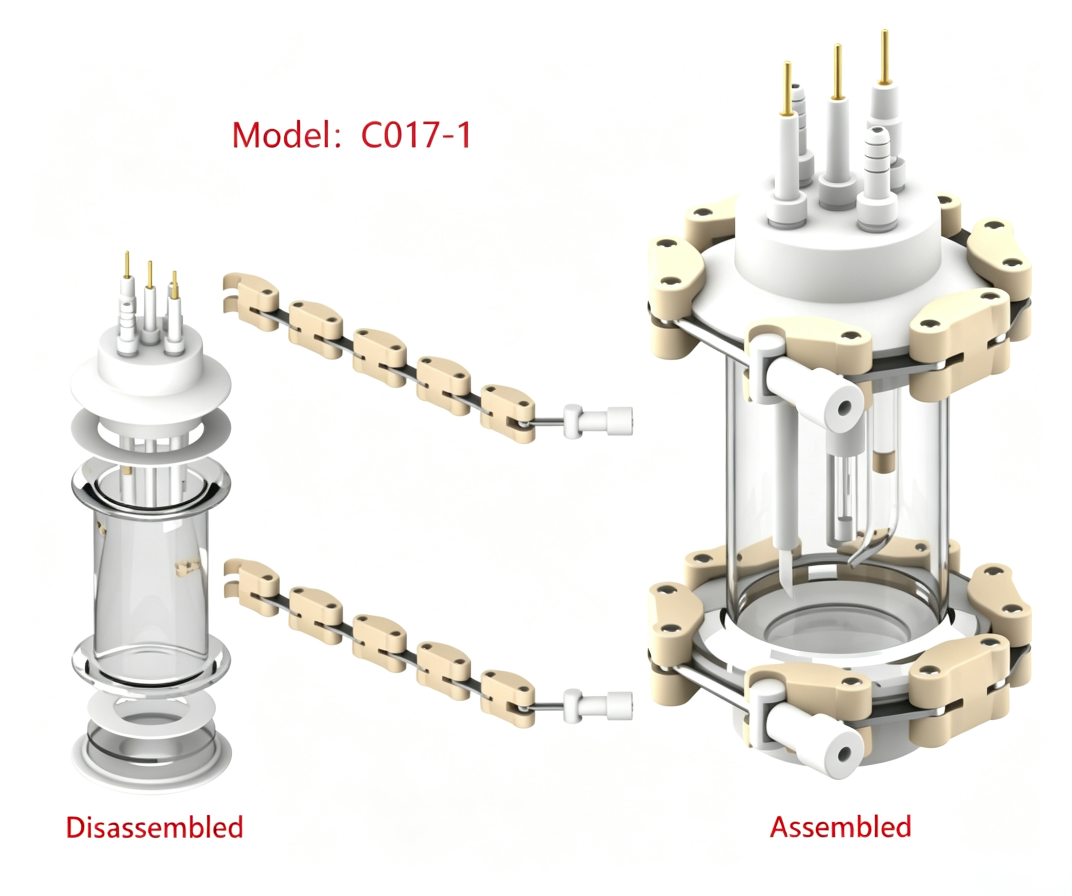

Model: C017-1

• The cell body is fully quartz with fusion welding construction, no adhesive glue applied.
• Light transmittance of quartz material is higher than 95%.
• The cover is made of PTFE.
• Optional gas inlet and outlet assembly is available.
• A standard reference electrode with 6 mm diameter is compatible.
• Counter electrodes with 6 mm shaft diameter are applicable.
• Working electrodes with 6 mm shaft diameter or electrode clamps can be matched.
• It is designed as a semi-sealed system.
• The quartz sealing part features a flange structure; sealing is achieved by tightening the lock ring to press the PTFE cover against the sealing gasket.
• Electrode sealing is completed on PTFE stoppers, relying on sealing screws to compress O-rings for airtight performance.
