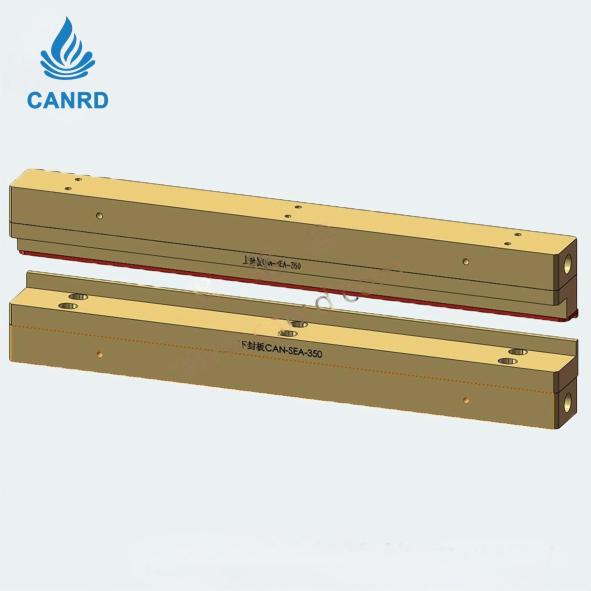

Pouch cell head

Pouch cell head

$785.31
item_NoSpecificationsPrice
CF-BAT-FIN02030200ASecondary sealing machine head (upper head + lower head) 30mm×200mm×19.5mm$785.31
CF-BAT-PRE02030350Pre-sealing machine head (upper head + lower head) 30mm×350mm×19.5mm$906.12
CF-BAT-SEA-00000000BReturn the head to the factory for repair (upper head + lower head)$151.02
CF-BAT-SID02030200side sealing machine head (upper head + lower head) 30mm×200mm×19.5mm$785.31
CF-BAT-TOP02030300Top sealing machine head (upper head + lower head + soft sealing plate) 30mm×300mm×19.5mm$875.92
FIN02030200A-J01-001Second sealing machine upper head 30mm×200mm×19.5mm$392.65
FIN02030200A-J01-002Secondary Sealing Machine Lower Head 30mm×200mm×19.5mm$392.65
PRE02030350-J01-001Pre-sealing machine upper head 30mm×350mm×19.5mm$453.06
PRE02030350-J01-002Pre-sealing machine lower head 30mm×350mm×19.5mm$453.06
SID02030200-J01-001side sealer upper head 30mm×200mm×19.5mm$392.65
SID02030200-J01-002side sealer lower head 30mm×200mm×19.5mm$392.65
TOP02030300-J01-001top sealer upper head 30mm×300mm×19.5mm$422.86
TOP02030300-J01-002top sealer bottom head 30mm×300mm×19.5mm$422.86
TOPD02030300-J01-003soft cover board 10mmx300mmx2$30.21
✓ Selected: CF-BAT-FIN02030200A / Secondary sealing machine head (upper head + lower head) 30mm×200mm×19.5mm
Quality Assurance
Factory Direct
Global Shipping

Details

This product is designed for pouch cell sealing processes in battery manufacturing, offering a range of interchangeable heads for top, side, pre-sealing, and secondary sealing applications. The CF-BAT-TOP02 model from Canrd provides precise heat sealing with adjustable sealing time, width, and temperature control, accommodating various aluminum-plastic film thicknesses. Key characteristics include a maximum seal length of up to 300 mm for top sealing, customizable seal widths from 3 to 10 mm, and high head parallelism for consistent results. These heads are suited for research and small-scale production environments where reliable edge banding and thermal sealing are critical for pouch cell assembly. Customization options are available to meet specific customer requirements, making the equipment adaptable for different battery formats and experimental setups.

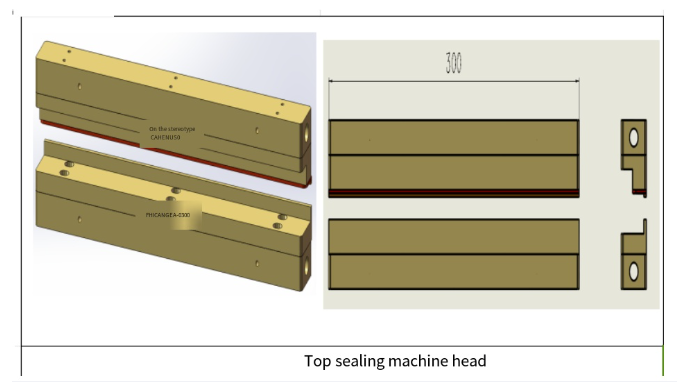

Top sealing machine

1. Maximum seal length: 300mm
2. Seal width: standard 3mm±0.4 (3~10mm optional) (customizable)

3. Edge banding thickness: 200~700um (depending on the thickness of aluminum-plastic film)

4. Packaging time: standard 2S-3S (0-99s adjustable)

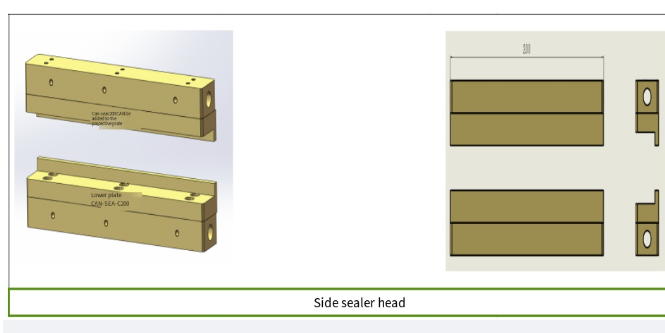

Side sealing machine
1. Maximum seal length: 200mm
2. Seal width: standard 5mm±0.4 (3~10mm optional) (customizable)

3. Thickness of side banding: 60~300um (depending on the thickness of aluminum-plastic film)

4. Packaging time: standard 2S-3S (0-99s adjustable)

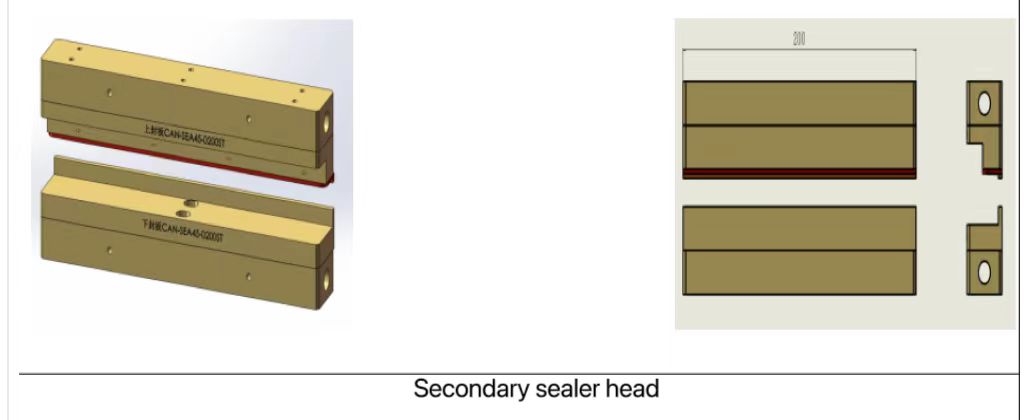

Secondary sealing machines
1. Maximum edge banding size: 200mm
2. Edge banding width: 5±0.4mm
3. Seal thickness range: 60~300um
4. Heat sealing time: 0~99 seconds adjustable

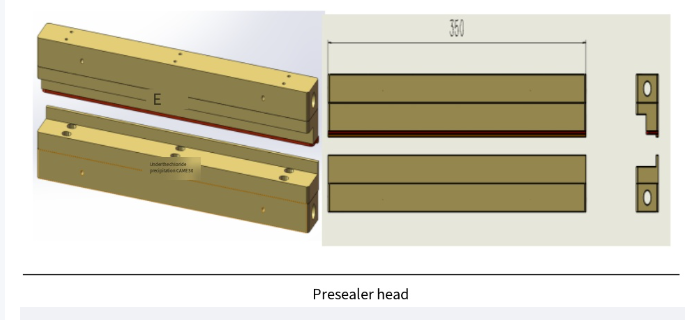

Pre-sealing machine
1. Edge banding width: 6mm
2. The maximum temperature of the head: 300°C, the temperature difference ±2°C
3. Heat sealing time: 0-99s, heat sealing time can be adjusted
4. Upper and lower heads: three teeth/parallelism: 0.03mm

The head can be customized according to customer needs, please contact customer service for details
