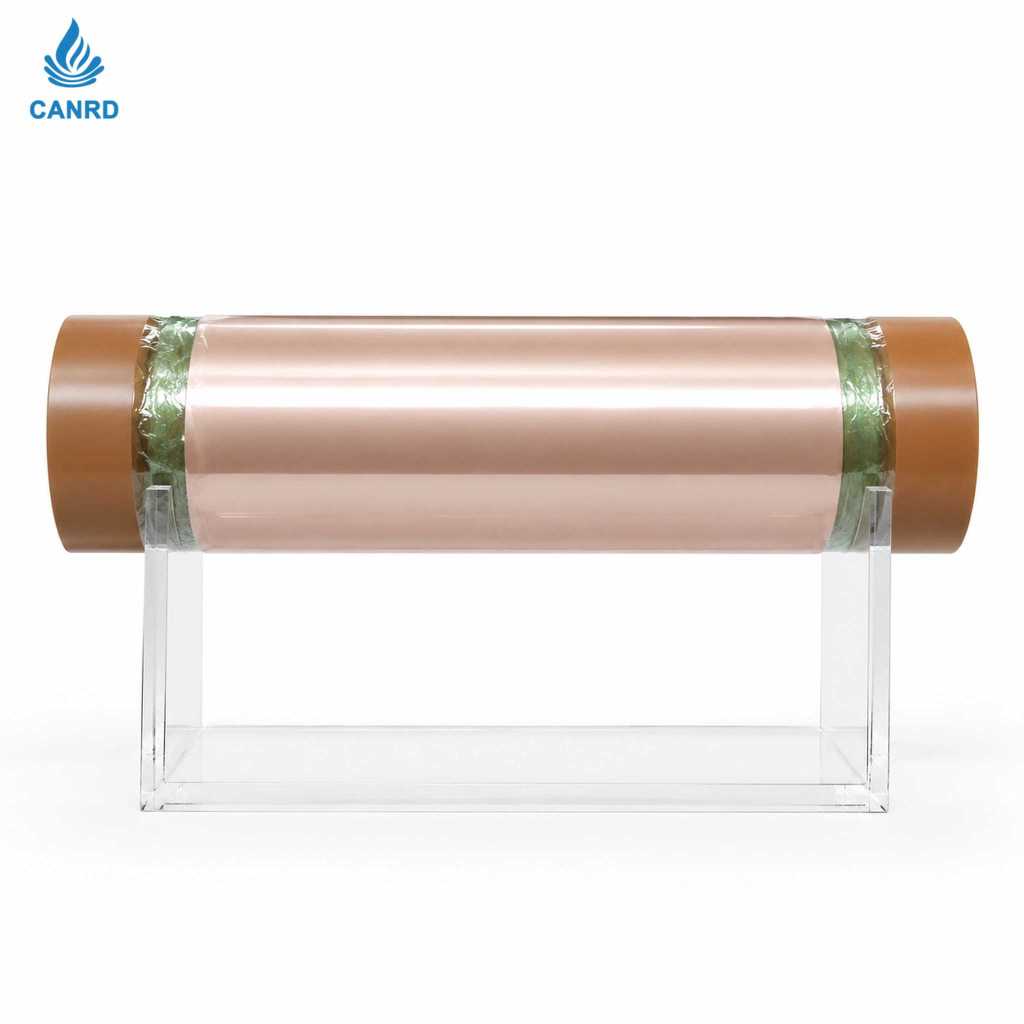

Microporous copper foil (9um)
Microporous copper foil (9um)

Microporous copper foil (9um)

$302.04
item_NoSpecificationsPrice
MA-EN-CU-0055019um*200mm 1kg$302.04
✓ Selected: MA-EN-CU-005501 / 9um*200mm 1kg
Quality Assurance
Factory Direct
Global Shipping

Details

This product is a dual-gloss microporous copper foil designed for use as a current collector in energy materials and experimental battery research. With a thickness of 9 micrometers and a width of 200 mm, it offers a balanced combination of mechanical flexibility and electrical conductivity, making it suitable for electrode fabrication in lithium-ion or other advanced battery systems. The microporous structure, achieved through precise processing, enhances electrolyte wettability and active material adhesion, which can contribute to improved electrode performance. Notably, the double-sided gloss finish facilitates uniform pore formation during manufacturing, while single-gloss variants require custom production. This foil is supplied in 1 kg rolls and is primarily intended for R&D settings where consistent, high-quality current collector substrates are needed for evaluating new electrode chemistries or coating processes.

Note: This is a dual gloss microporous copper foil. Single gloss copper foil is not easy to form holes and needs to be customized. The price is negotiable

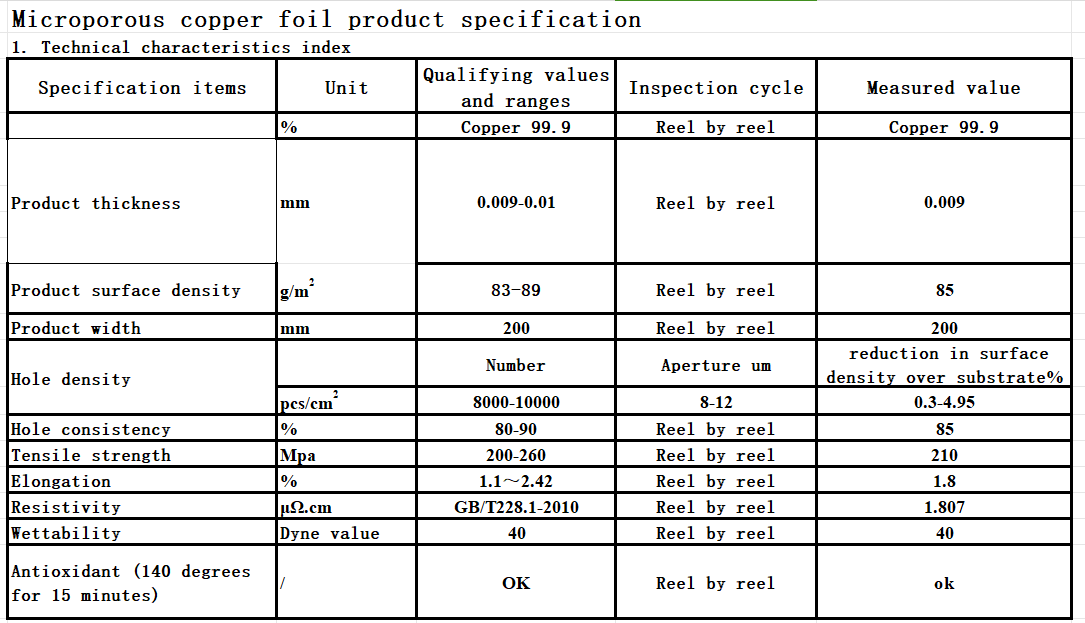

Microporous Copper Foil Specifications

Technical Specifications

Specification Item Unit Qualifying Value / Range Inspection Cycle Measured Value
/ % Copper 99.9 Reel by Reel Copper 99.9
Product Thickness mm 0.009–0.010 Reel by Reel 0.009
Product Areal Density g/m² 83–89 Reel by Reel 85
Product Width mm 200 Reel by Reel 200
Hole Density Number pcs/cm² 8,000–10,000 / /
Hole Density Aperture μm 8–12 / /
Hole Density Reduction in Areal Density Relative to the Substrate % 0.3–4.95 / /
Hole Consistency % 80–90 Reel by Reel 85
Tensile Strength MPa 200–260 Reel by Reel 210
Elongation % 1.1–2.42 Reel by Reel 1.8
Resistivity μΩ·cm GB/T 228.1-2010 Reel by Reel 1.807
Wettability Dyne Value 40 Reel by Reel 40
Oxidation Resistance, 140 °C for 15 min / OK Reel by Reel OK



image.png image.png
