LLZTO tantalum niobium co doped lithium lanthanum zirconium oxide solid electrolyte containing niobium (500nm)
LLZTO tantalum niobium co doped lithium lanthanum zirconium oxide solid electrolyte containing niobium (500nm)

LLZTO tantalum niobium co doped lithium lanthanum zirconium oxide solid electrolyte containing niobium (500nm)

$54.37
Model：
MA-EN-SS-0024
item_No
Specifications
Price
MA-EN-SS-002401
10g
$54.37

Details

Main parameters
Product name Niobium Containing LLZTO Tantalum Niobium Co Doped lithium Lanthanum Zirconium Oxide Solid Electrolyte (500nm)
Chemical formula Li6.5La3Zr1.5（Ta+Nb）0.5O12
Physical properties D50 particle size 500nm, purity 99.9%
Appearance White powder
Applications Used in lithium-ion solid electrolytes
Ionic conductivity  0.8mS/cm.
Other After agglomeration, it can be ball-milled or ground.

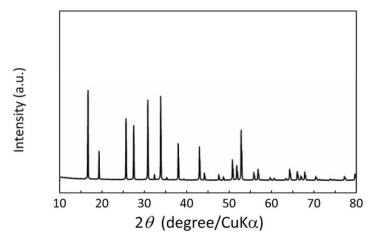

XRD

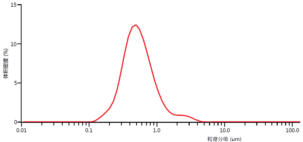

Particle size distribution reference

SEM



Vacuum-sealed packaging, avoid contact with moisture, shelf life 1 year.

Use in a dry environment, seal and store after use, seal and waterproof.
