Lithium-rich manganese-based -E

Lithium-rich manganese-based -E

$60.41
item_No
Specifications
Price
MA-EN-CA-008901
20g
$60.41

Details

This product is designed for advanced lithium-ion battery applications requiring high energy density cathodes. The lithium-rich manganese-based composition, with a balanced Ni, Co, and Mn content (approximately 8.4 wt% Ni, 8.5 wt% Co, and 29.4 wt% Mn), delivers an initial discharge capacity of 296.6 mAh/g and a first-cycle efficiency of 89.7% under 0.1 C testing between 4.6–2.0 V. The material exhibits a D50 particle size of 12.55 µm, a BET surface area of 3.64 m²/g, and a tap density of 2.10 g/cm³, supporting good processability and electrode packing. Typical applications include high-voltage cathodes for next-generation electric vehicle batteries and high-capacity energy storage systems where stable cycling and elevated specific capacity are critical.
Number Test Project Unit Specification Measured Result Testing Method or Instrument
1 Chemical Composition Li (wt%) 8.0±1.0 7.92 ICP
2 Ni (wt%) 8.0±1.0 8.43
3 Co (wt%) 8.0±1.0 8.45
4 Mn (wt%) 29.0±1.0 29.39
5 Fe (wt%) ≤0.1 0.0523
6 Al (wt%) ≤2.0 0.9164
7 Na (wt%) ≤100.0 46.5010
8 Ca (wt%) ≤2.0 0.5362
9 Zn (wt%) ≤10.0 1.9680
10   S (wt%) ≤20.0 2.6292
11   K (wt%) ≤2.0 0.6438
12 Physical Properties Particle size distribution D10 (µm) ≥7.0 9.06 Laser particle size analyzer
13 D50 (µm) 10.0~14.0 12.55
14 D90 (µm) ≤20.0 17.67
15 BET (m2/g) 3.2~3.8 3.64 Fully automatic specific surface area and porosity analyzer
16 TD (g/cm3) ≥2.0 2.10 Tap density measuring instrument

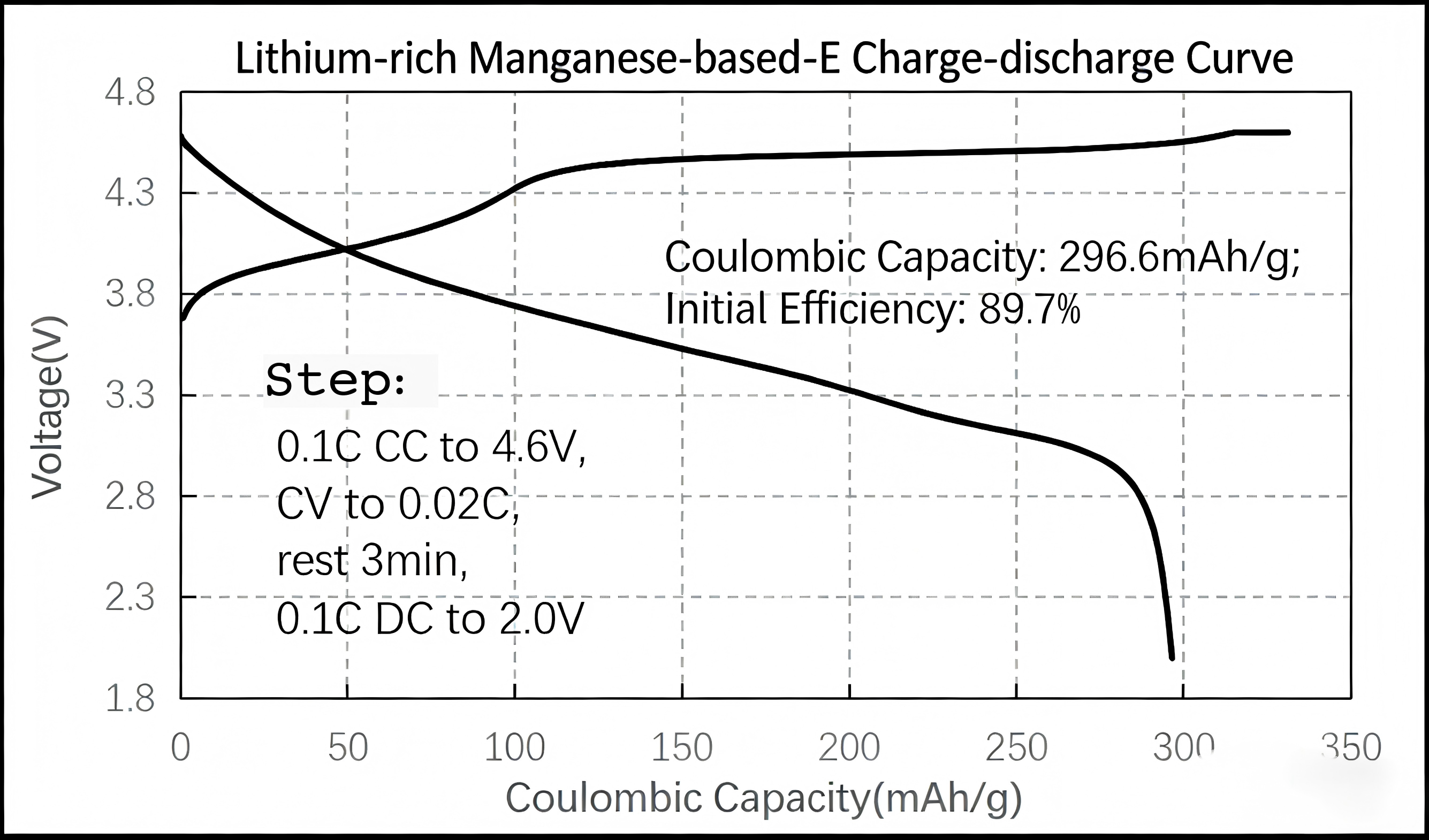

17 Electrochemical performance Initial discharge capacity (mAh/g) ≥280.0 296.6

CR2032

0.1/0.1C(4.6-2.0V)

18 First-time efficiency (%) ≥88.0 89.7

Half-cell test
