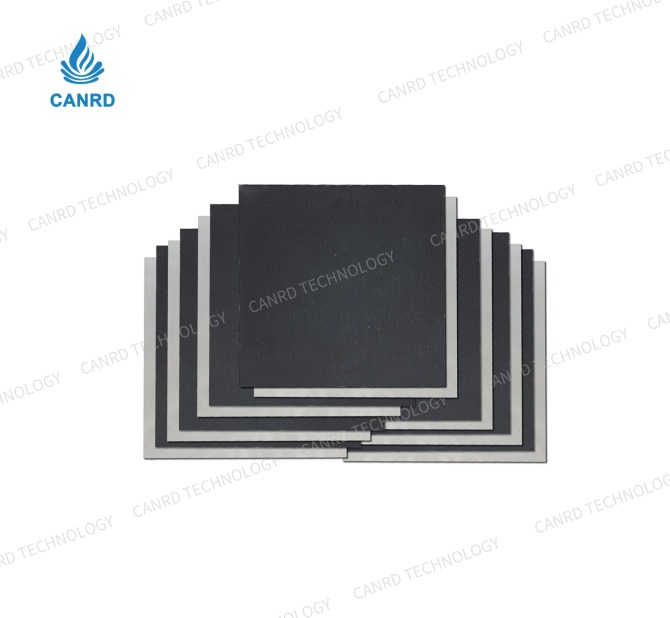

Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY24)

Name: Lithium-ion Battery Cathode Electrode Sheet (NCM622 Lithium Nickel Cobalt Manganese Oxide SY24)
Brand: Canrd
Price: 75.51 USD
Availability: InStock

$75.51

Model：

CU-EL-PL-6002

item_No

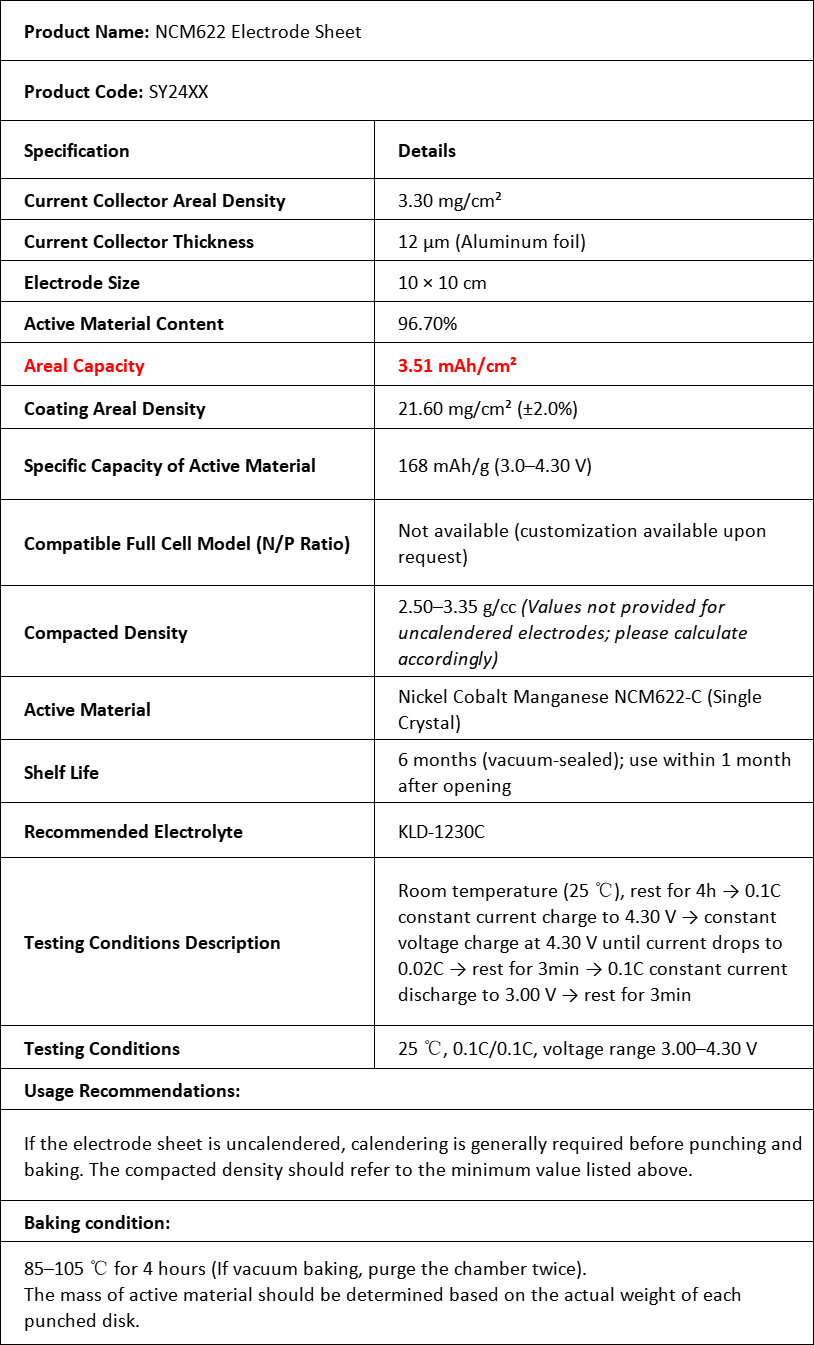

Specifications

Price

No. SY24XX

5 Pcs / Calendered

$75.51

Details

Overview

Specifications

Details

This NCM622 cathode electrode sheet is designed for advanced lithium-ion battery research, featuring single-crystal nickel-cobalt-manganese (NCM622-C) active material. The electrode is optimized for use with Canrd-recommended testing protocols and specific electrolytes, such as 622 cutoff or ternary electrolyte KLD-1230C, to ensure reliable electrochemical performance. Proper handling is critical: storage requires vacuum or doubled sealed bags to prevent moisture-induced degradation, and the sheet requires rolling within the suggested compactness range to avoid fold lines. Typical applications include coin-cell and pouch-cell fabrication for evaluating cathode performance under controlled conditions. The product is available in rolled or unrolled formats, with customized options, and is intended for users familiar with standardized electrode preparation procedures.

Canrd	10*10cm		5 sheets/pack			Coating
NO.	Electrode Name	Model	Main Material	Active Material Capacity (mAh/g)	Loading	Areal Density (mg/cm²)	Areal Capacity (mAh/cm²)
1	NCA Electrode	SY51	NCA-S (Nickel Cobalt Aluminum Oxide)	195	94.50%	17.66	3.25
2	Ni90 Electrode	SY41	Ni90 Single Crystal NCM	195	94.50%	9.50	1.75
3	NCM811 Electrode	SY33	NCM811 Single Crystal	188	94.50%	9.20	1.63
4	NCM811 Electrode	SY34	—	188	94.50%	21.50	3.82
5	NCM622 Electrode	SY25	NCM622 Single Crystal-B	168	96.70%	10.00	1.62
6	NCM622 Electrode	SY24	—	168	96.70%	21.60	3.51
7	NCM523 Electrode	SY15	NCM523	165	94.00%	19.70	3.06
8	NCM523 Electrode	SY13	NCM523	165	94.00%	10.50	1.63
9	LCO Electrode	LC02	High Voltage Lithium Cobalt Oxide-Z-4.45V	178	96.40%	10.00	1.72
10	LRM Electrode	FL01	Lithium-rich Manganese-based-E	280	95.00%	5.96	1.59
11	Graphite Electrode	SM02	Natural Graphite (Standard)-A	340	95.70%	5.80	1.89
12	Fast Charging Graphite Electrode	SM04	Fast Charging Graphite-B	350	96.70%	5.60	1.90
13	Silicon Carbon Electrode	SC02	Silicon Carbon Anode 1800 (Porous Carbon Deposited Silicon)	420	95.00%	4.80	1.92
14	NFM Electrode	NT02	Sodium Nickel Iron Manganese Oxide	127	95.50%	12.27	1.49
15	NFM Electrode	NT03	—	127	95.50%	8.00	0.97
16	Hard Carbon Electrode	YT02	Imported Hard Carbon (5 μm)	300	95.50%	6.00	1.72
17	LFP Electrode	LF07	Lithium Iron Phosphate (High Compaction Density)	150	91.50%	12.30	1.69
18	LNMO Electrode	NM01	High Voltage Lithium Nickel Manganese Oxide-B	130	96.00%	7.50	2.00
19	NFPP Electrode	NF01	Sodium Iron Phosphate Pyrophosphate	100	93.50%	15.30	1.43
20	Vanadium Pentoxide Electrode	VO02	Vanadium Pentoxide	300	80.00%	5.00	1.20
21	Manganese Dioxide Electrode	MO01	Manganese-based or Vanadium-based Material	100	80.00%	5.00	/
22	Zinc Negative Electrode	ZA01	Pure Zinc Powder / Alloy Zinc Powder	/	70.0%–96.0%	5.0–15.0	/

MOQ for Custom Small Electrode Sheets: 10*10cm/pcs，5cs/pack，1pack

To place an order or request a quotation, please Contact Us.

Storage Conditions (Vacuum storage or double-layered sealing in self-sealing bags within the glove box, especially for high-nickel and sodium-positive electrode materials; improper storage might lead to increased internal resistance in batteries).

Fold Lines: Single-sided cathode sheets tend to curl after rolling, leading to potential fold lines when flattened for packaging.

Materials used in this cathode sheet: Nickel Cobalt Manganese NCM622-C (single crystal). Electrolytes used during testing: 622 cut-off electrolyte; ternary electrolyte (KLD-1230C).

Rolling of cathode sheets required (recommend pressing within the lower range of the suggested compactness for the respective cathode sheets), cathode sheet baking conditions at 105°C for 4 hours, 8 hours of static placement after injection, and post-charge sealing pressure of 1300 psi for the positive electrode cathode sheet after constant current charging at 0.02C.

This product must be tested according to Canrd recommended testing methods and electrolytes to achieve the desired performance.
Because testing methods and electrolytes significantly impact battery performance, changing the testing method or electrolyte may degrade electrode performance. Please verify this information before purchasing.
