Lithium cobalt oxide(LCO) (magnification type)-C

$45.31

Model：

MA-EN-CA-0004

item_No

Specifications

Price

MA-EN-CA-000401

20g

$45.31

Details

Specifications

Details

1. Due to the small particle size and large specific surface area of the material, compared with the positive electrode formula of ordinary LiCoO2, more conductive and adhesive agents are required to ensure good electronic transmission network.

2. Due to the small particle size, the compaction density of the electrode sheet is 0.3-0.5g/cc lower than that of conventional LiCoO2.

1. MA-EN-CA-0R lithium cobalt oxide, single crystal structure, with small particle size and large specific surface area, facilitating rapid insertion and extraction of lithium ions, resulting in excellent rate performance and good cycling stability.

2. Good processability and stable quality for commercial mass production.

3. Widely used in high-rate requirement products such as drones and electronic cigarettes.

4. Convenient for research on pouch cells and coin cells.

SEM image:

LiCoO2 (high rate)-C.png

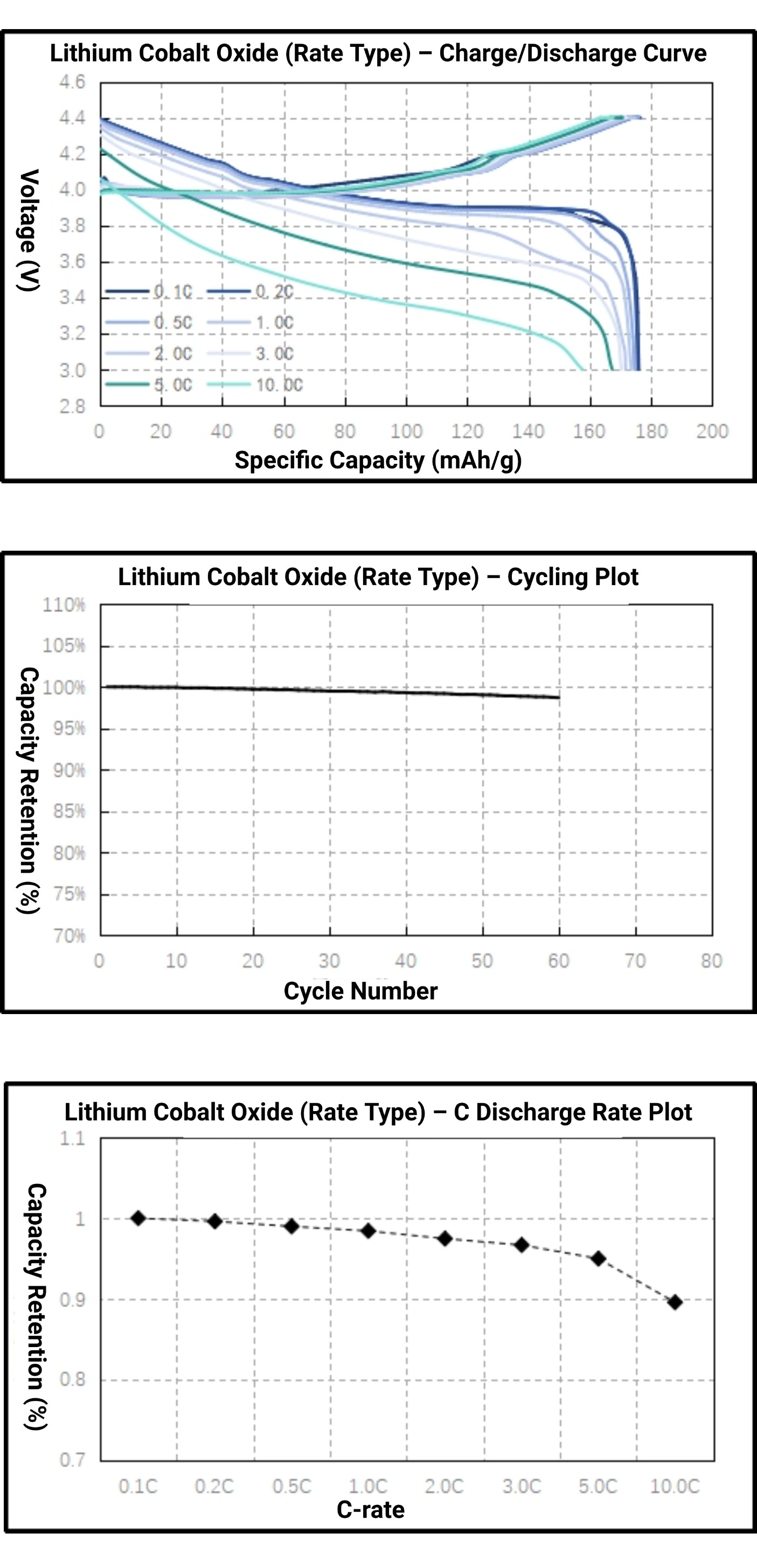

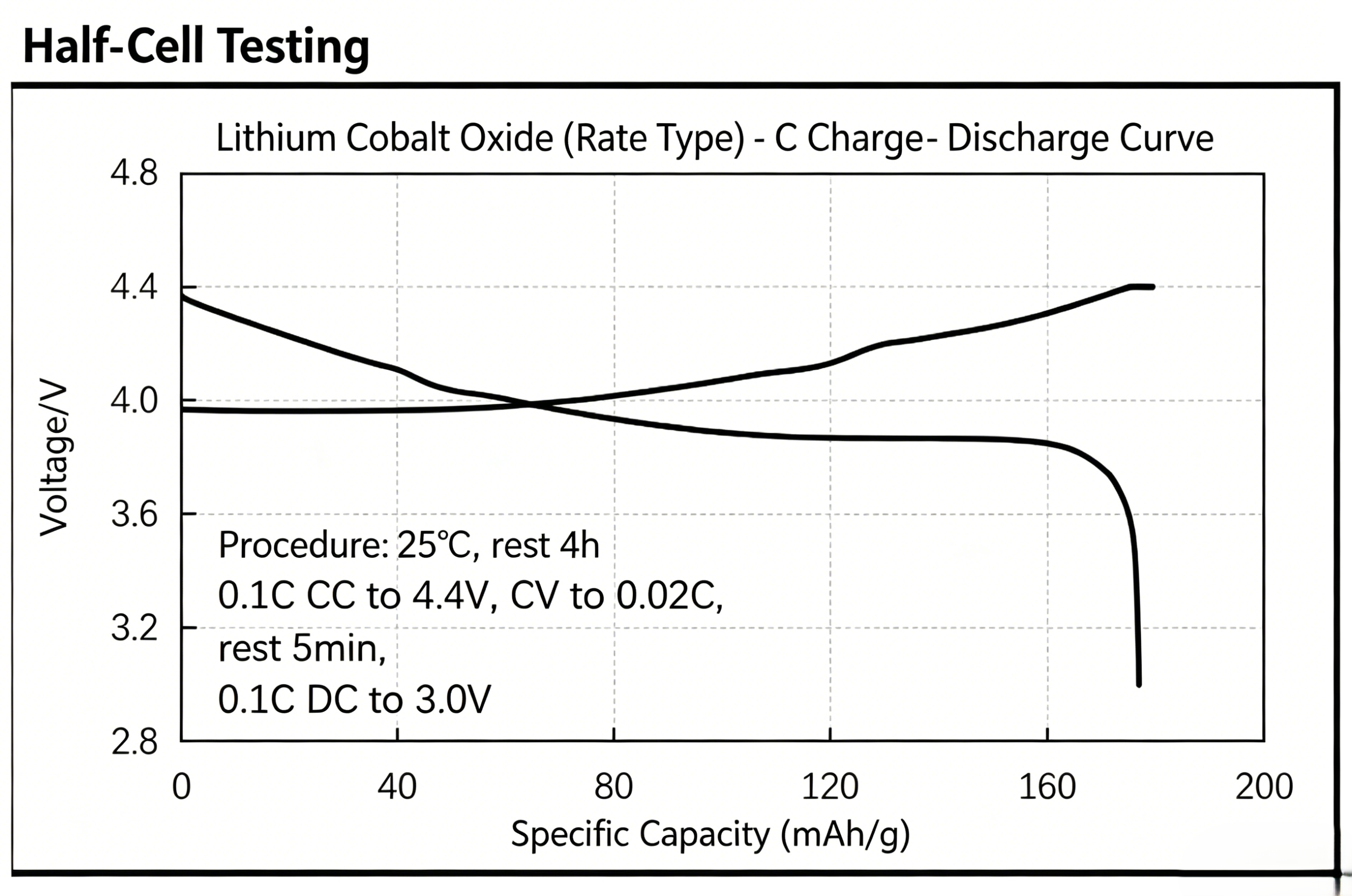

Charge/discharge curve:

1. Storage conditions: sealed storage at room temperature.
2. Shelf life: 2 years from the production date.

Remarks:
1、CC – Constant Current Charge; DC – Constant Current Discharge; CV – Constant Voltage Charge
2、Recommended Electrolyte: Lithium Cobalt Oxide Electrolyte (KLD-1376)
