Product Instructions & Recommendations

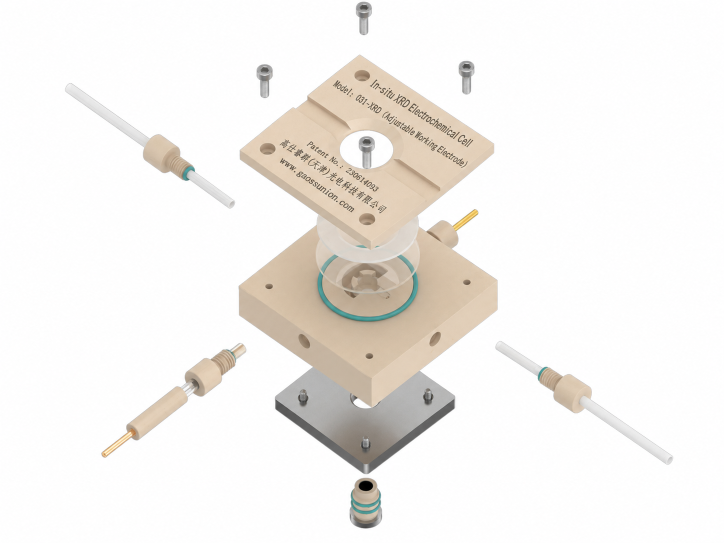

- This in-situ electrochemical cell is designed to investigate the in-situ spectral and morphological evolution of electrode materials during electrochemical experiments. The working electrode (WE) is placed directly beneath the transparent window, enabling optical instruments to observe the working electrode through the optical window.
- The main body of the electrochemical cell is constructed from PEEK and high-purity titanium; it supports rapid assembly and disassembly for convenient cleaning.
- The cell is applicable to in-situ electrochemical testing under flow systems, and electrolyte can also be simply filled via injection.
- Optical window material: PI (Polyimide)
- Distance between working electrode and optical window: Less than 3 mm
- The standard working electrode is a 5 mm glassy carbon electrode. Disk electrodes such as gold disk, platinum disk and silver disk are available as replacements upon request (price difference supplement required if applicable).
- Standard configuration includes reference electrode (Ag/AgCl or Ag⁺ electrode) and counter electrode (platinum electrode)
