In-situ Battery Simulation Observation Cell (For Lithium Dendrite Testing)
In-situ Battery Simulation Observation Cell (For Lithium Dendrite Testing)
In-situ Battery Simulation Observation Cell (For Lithium Dendrite Testing)

In-situ Battery Simulation Observation Cell (For Lithium Dendrite Testing)

$845.71
item_No
Specifications
Price
MA-EN-BE-009301
C031-5
$845.71

Details

Product Description & Specifications

Model: C031-5

• The conductive substrate of this electrochemical cell is made of high-purity titanium.

• This cell simulates lithium-ion coin cells for observing lithium dendrite growth on the cross-section of lithium sheets.

• The optical window is made of sapphire glass with a light transmittance of over 95%.

• Applicable lithium sheet size: 10*10 mm

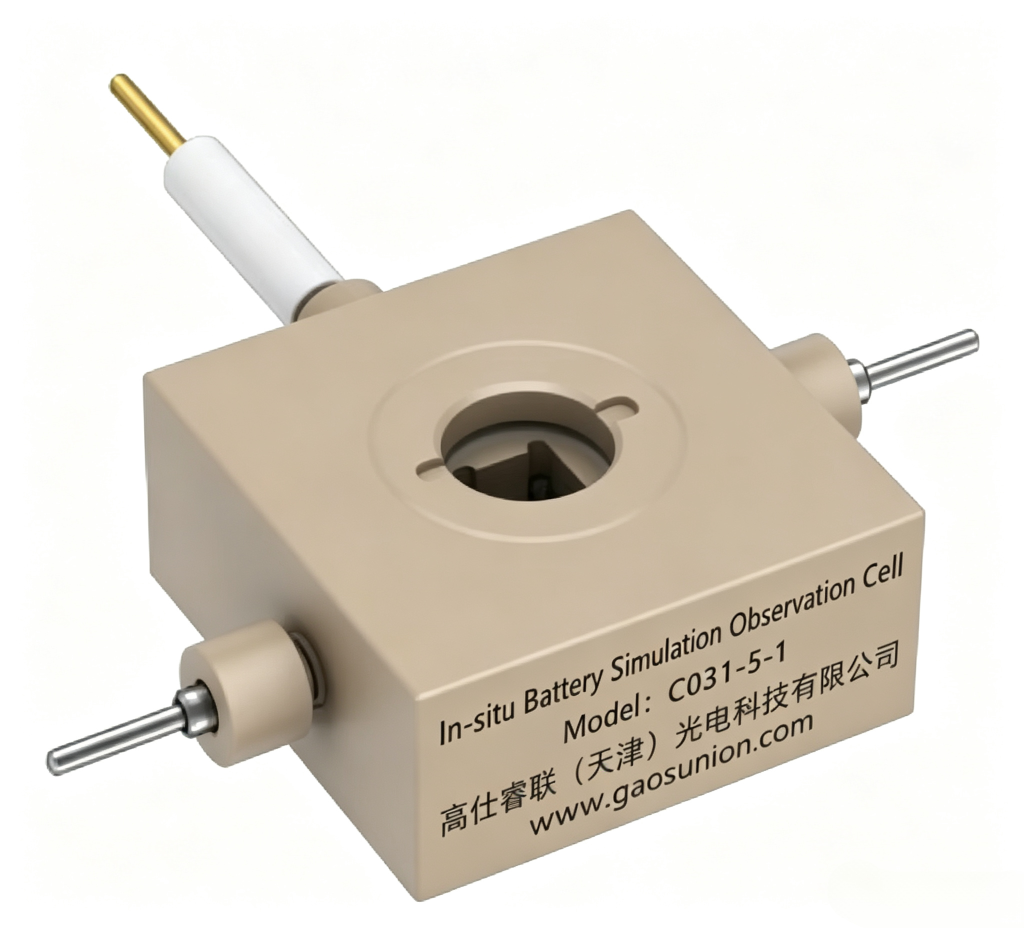

Model: C031-5-1

• Equipped with an additional reference electrode on the basis of model C031-5.

• Conductive substrate: high-purity titanium.

• This electrochemical cell simulates lithium-ion coin cells to observe lithium dendrite growth on lithium sheet cross-sections.

• Optical window material: sapphire glass with light transmittance above 95%.

• Applicable lithium sheet dimension: 10*10 mm
