This carbon paper, model HCP020P from Shanghai Heson, is a hydrophobic gas diffusion layer designed for use in fuel cells and related electrochemical research, including zinc battery and lithium-air battery studies. With a thickness of 0.2 mm and a porosity of 75%, it offers a balance between gas transport and structural support. Its waterproof treatment and low air resistance (<12 mmH₂O) facilitate effective water management in operating cells, while the resistivity of ≤16 mΩ·cm ensures adequate electronic conductivity. The material also demonstrates a bending radius greater than 10 cm, indicating acceptable mechanical flexibility for electrode assembly. Supplied in 21 × 20 cm sheets, this carbon paper is suitable for laboratory-scale fabrication and testing within experimental energy materials development.



Product Name	HCP010N	HCP020N	HCP020P	HCP030N	HCP030P	HCP120	HCP121	HCP122	HCP125	HCP130	HCP135

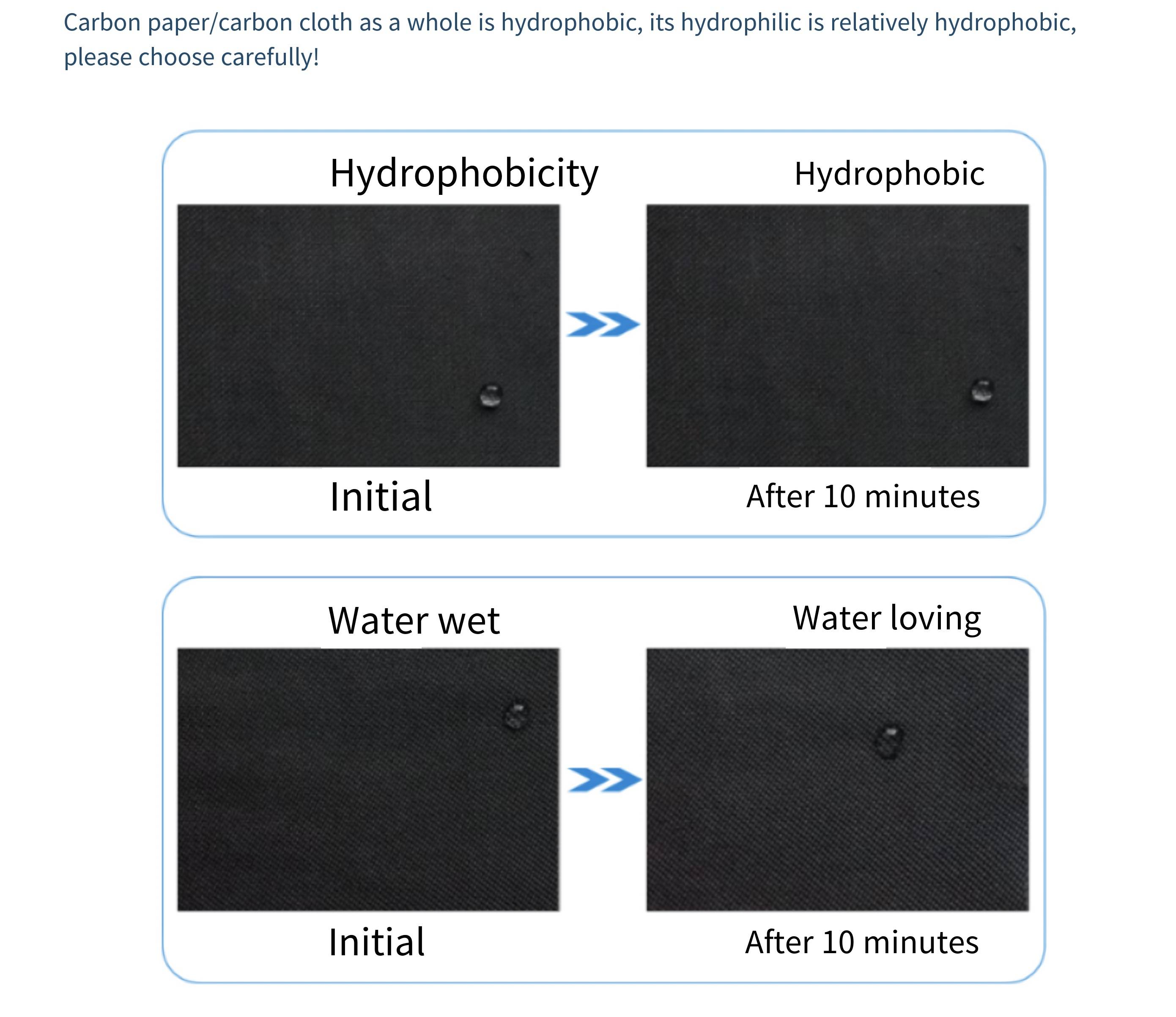

Water Resistance	Non-waterproof	Non-waterproof	Waterproof	Non-waterproof	Waterproof	With Filling Layer	With Filling Layer	With Filling Layer	With Filling Layer	With Filling Layer	Filling (Self-humidifying)
Thickness (mm)	0.10	0.20	0.20	0.30	0.30	0.220	0.210	0.230	0.260	0.290	0.32
Resistivity (mΩ·cm)	≤10	≤11	≤16	≤12	≤18	≤23	≤14	≤15	≤31	≤34	≤35
Porosity (%)	80	80	75	80	75	一	一	一	一	一	一
Air Resistance (mmH₂O)	<11	<11	<12	<11	<12	>20	>20	>20	>20	>20	>20
Bending Radius (cm)	>10	>10	>10	>10	>10	>10	>10	>10	>10	>10	>10
