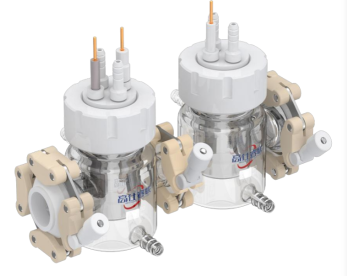

Product Description & Specifications

• The optical window of the cell is made of quartz with light transmittance higher than 95%.
• The optical window assembly is connected to the cell body via locking rings to ensure tight sealing, enabling fast and convenient replacement of quartz window sheets.
• Custom matched electrodes are available as required, and all matching electrodes must be extended type.
• The single-layer cell body adopts a hollow layered design to effectively eliminate solution shadowing.
• This cell is widely used for three-electrode systems. Cell volumes range from 30 mL to 500 mL, and customized volumes are available upon request.
• The cathode and anode compartments are separated by an ion exchange membrane (supplied by the user). The two compartments are hermetically connected by locking rings for easy membrane replacement. The reference electrode and working electrode are arranged in the same compartment to efficiently reduce IR drop.
• The cell inner core is made of 360° rotatable PTFE, which allows precise alignment of electrodes with flow channels (electrodes are generally arranged parallel to the membrane).
• Equipped with a submersible aeration device for atmosphere control according to experimental requirements. Straight aeration fittings are used for CO₂ reduction experiments, and L-type fittings for nitrogen reduction tests.
• The double-layer model adds a thermostatic water bath function based on the single-layer version, which circulates constant-temperature water to maintain a stable temperature of the test solution inside the cell.
• Standard configuration does not include a sampling port. Additional quotation is required if a sampling port is needed.
