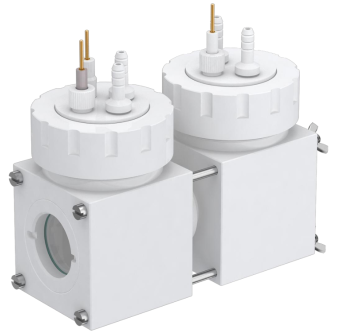

Fully PTFE H-Type Membrane-Replaceable Photoelectrochemical Cell (Relatively Sealed)

$567.84

item_NoSpecificationsPrice

MA-EN-BE-006301C027-1(30ml)$567.84

MA-EN-BE-006302C027-1(40ml)$567.84

MA-EN-BE-006303C027-1(50ml)$658.45

MA-EN-BE-006304C027-1(100ml)$658.45

MA-EN-BE-006305C027-1(150ml)$960.49

MA-EN-BE-006306C027-1(200ml)$1141.71

MA-EN-BE-006307C027-1(250ml)$1141.71

MA-EN-BE-006308C027-1(500ml)$2229.06

✓ Selected: MA-EN-BE-006301 / C027-1(30ml)

Quantity

Quality Assurance

Factory Direct

Global Shipping

Details

Working electrodes, counter electrodes and reference electrodes can be matched as required, and all matched electrodes are extended type.
The cell body is made of polytetrafluoroethylene (PTFE).
It is commonly used for three-electrode systems. The cell volume ranges from 30 mL to 500 mL, and customized volumes are available on request.
The cathode and anode compartments are separated by an ion exchange membrane (to be provided by the user). The two compartments are hermetically connected via through bolts for convenient membrane replacement. The reference electrode and working electrode are placed in the same compartment, which effectively reduces IR drop.
The inner core adopts 360° rotatable PTFE to precisely align electrodes with the optical window, and sealing is realized by tightening the outer lid.
Sealing screws compress O-rings to achieve airtight sealing for electrode fittings.
Equipped with submerged gas spargers for atmosphere control in experiments. Spargers of different shapes are optional for different test scenarios: straight spargers for CO₂ reduction, L-shaped spargers for nitrogen reduction.
