Electrolyzed water test bench

Name: Electrolyzed water test bench
Brand: Canrd
Price: 11719.18 USD
Availability: InStock

$11719.18

Model：

item_No

Specifications

Price

FM-EE-EW-000101

T5-220

$11719.18

Details

Overview

Details

The T5‑220 water electrolysis test platform, developed for performance evaluation of water electrolysis single cells in the 0–10 W power range, is a desktop, highly integrated system suited for laboratory research on core materials such as exchange membranes, catalysts, and electrodes, as well as flow‑field structure studies. It features solution mass flow control, PID temperature regulation, and battery thermal balance management, with constant‑power, constant‑current, and constant‑voltage operating modes that support programmable automatic runs. Key components from internationally recognized manufacturers ensure reliable measurement accuracy and stability. The compact design saves bench space while providing complete experimental data for scientific users, and the system can be customized according to specific research needs.

T5-220 water electrolysis test platform is a test platform designed by our company for water electrolysis, which is suitable for the performance evaluation of water electrolysis single cells in the power range of 0W-10W. It can carry out the performance research of the core materials of water electrolysis (exchange membrane, catalyst, electrode, etc.) and flow field structure, and provide complete experimental data for scientific research users.

1. Features:

A. Desktop design, high integration, complete functions, small footprint, small and convenient

B. The main components and sensors of the system are made of internationally renowned manufacturers, with reliable quality, good stability and high measurement accuracy;

C. The power supply has a variety of operation mode options, which can be programmed to operate;

D. Products can be customized according to customer needs

2. Product configuration and technical specifications:

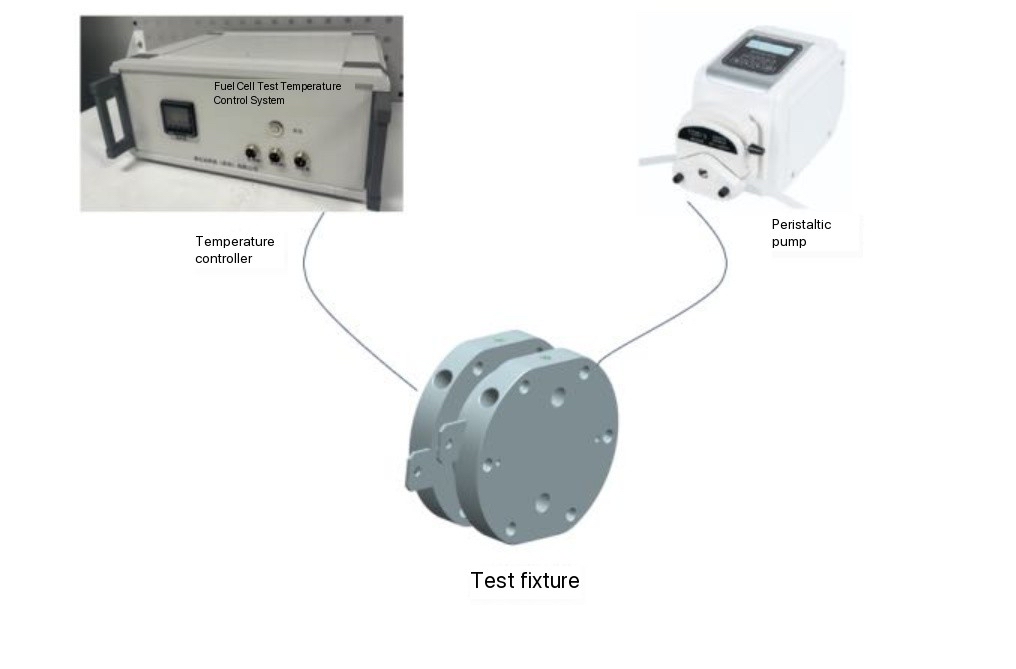

A. Solution mass flow control

B. Temperature PID control

C. Battery thermal balance management

D. It has constant power, constant current and constant voltage modes, and can be programmed to run automatically
