Details

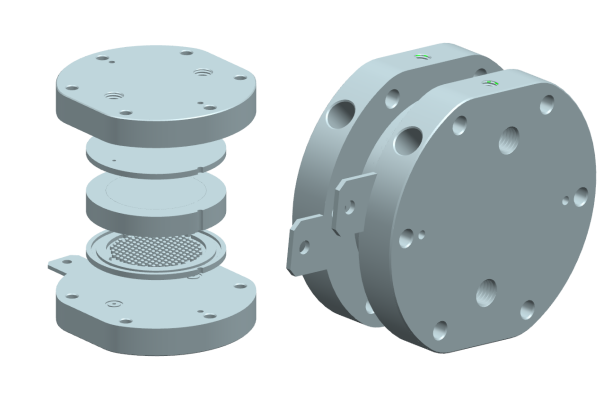

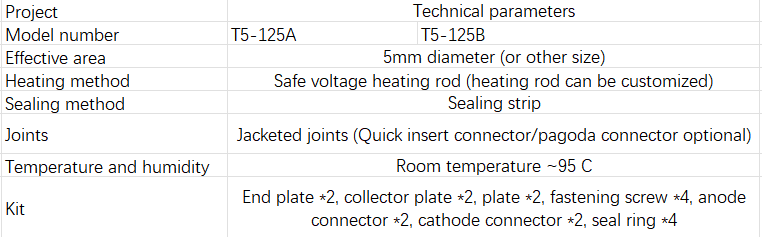

T5-125 is a special fixture (electrolyzer) used to test the polarization curve, AC impedance, electrochemical active area, and other properties of electrolyzed water film electrodes. T5-125A is mainly for PEM electrolyzed water, T5-125B is mainly for alkaline electrolyzed water, according to the different acidity and alkalinity, our company has made targeted optimization in the material and structure of the fixture, which greatly improves the corrosion resistance of the fixture and ensures its superior performance.
