Details

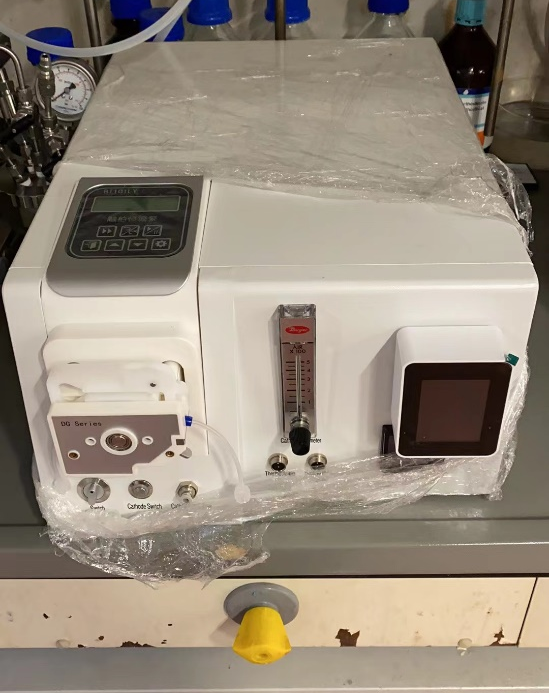

The T4-220 fuel cell membrane electrode test platform is a test platform designed by our company for direct methanol fuel cells, which is suitable for the performance evaluation of direct alcohol fuel cell cells in the power range between 0W and 10W. It can carry out the performance research of the core materials (proton exchange membrane, catalyst, gas diffusion layer, bipolar plate, etc.) and flow field structure of direct methanol fuel cells, and provide complete experimental data for scientific research users.
Features:
A. Desktop design, high integration, complete functions, small footprint, small and convenient
B. The main components and sensors of the system are made of internationally renowned manufacturers, with reliable quality, good stability and high measurement accuracy;
C. The load has a variety of operating modes to choose from, and can be programmed to run;
D. Products can be customized according to customer needs

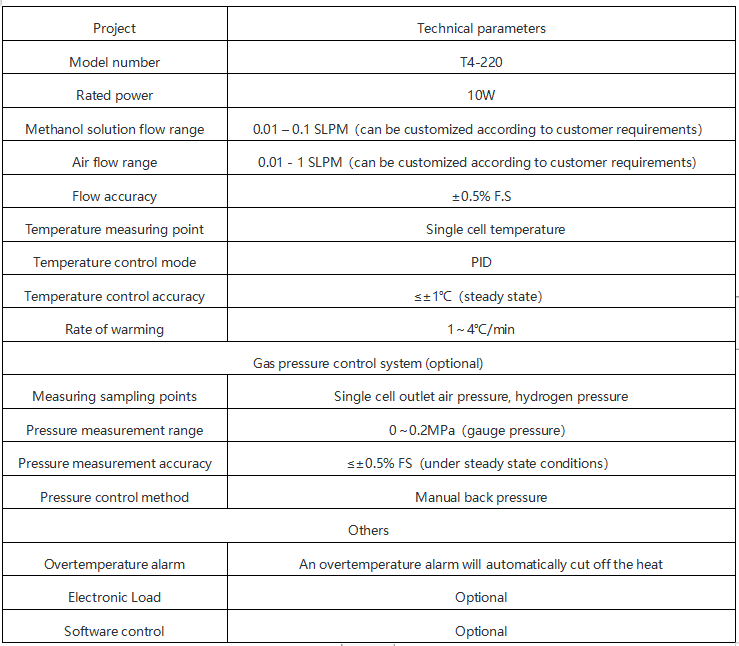

Product configuration and technical specifications:
A. Mass flow control of reaction gas and solution
B. Temperature PID control
C. Battery thermal balance management
D. It has constant power, constant current and constant voltage discharge modes, and can be programmed to run automatically
