Aviation Connector Cable for Neware mA-Level Battery Tester to Canrd Temperature Chamber

$9.06

item_No

Specifications

Price

MA-CM-TO-009501

Canrd GX16-4 Female to 12-pin Female Cable, 1 m

$9.06

Details

Overview

Specifications

Details

This aviation connector cable from Canrd is developed specifically for linking Neware milliampere-level battery testers, such as those operating at 50 mA or 100 mA capacity, to Canrd temperature chambers. Designed as a two-part assembly, each testing channel requires one GX16-4 female-to-12-pin female cable (1 m length) paired with one GX16-4 female-to-12-pin male cable (5 cm length), making it suitable for multi-channel setups like 80-channel systems. The cable supports a continuous current of up to 5 A and operates reliably across a temperature range of –20 °C to 80 °C. This configuration enables precise environmental control during charge–discharge cycling of small-format cells. Custom cable lengths or higher current ratings are available for bulk orders of 80 units or more, offering flexibility for research-grade battery testing applications.

Product Introduction:

1. Test cable temperature range: -20℃~80℃

2. Used for connecting Xinwei milliampere-level equipment (50mA/100mAh) to the Kelude incubator via flight connectors;

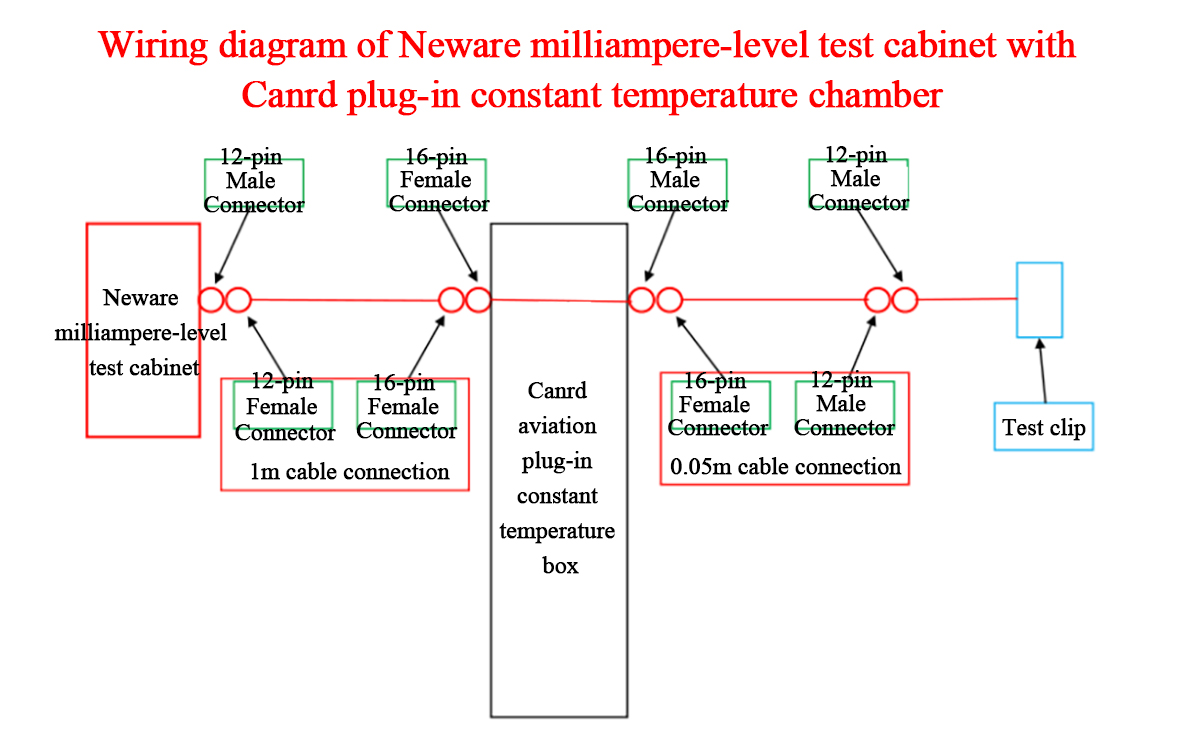

3. A single channel requires one of each of the two flight connector types (GX16-4 female connector - 12 female connector 1m + GX16-4 female connector - 12 male connector 5cm). An 80-channel system requires 80 connectors. See the diagram for specific connection instructions;

4. The test cable is compatible with a current of ≤5A. For higher current requirements, new test cables must be custom-made;

5. Custom orders of different specifications start at 80 connectors.
