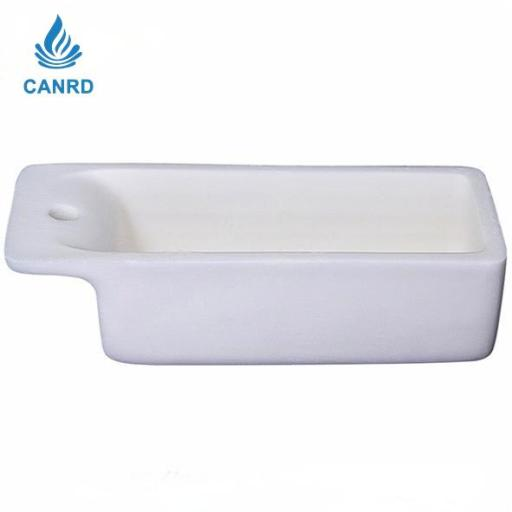

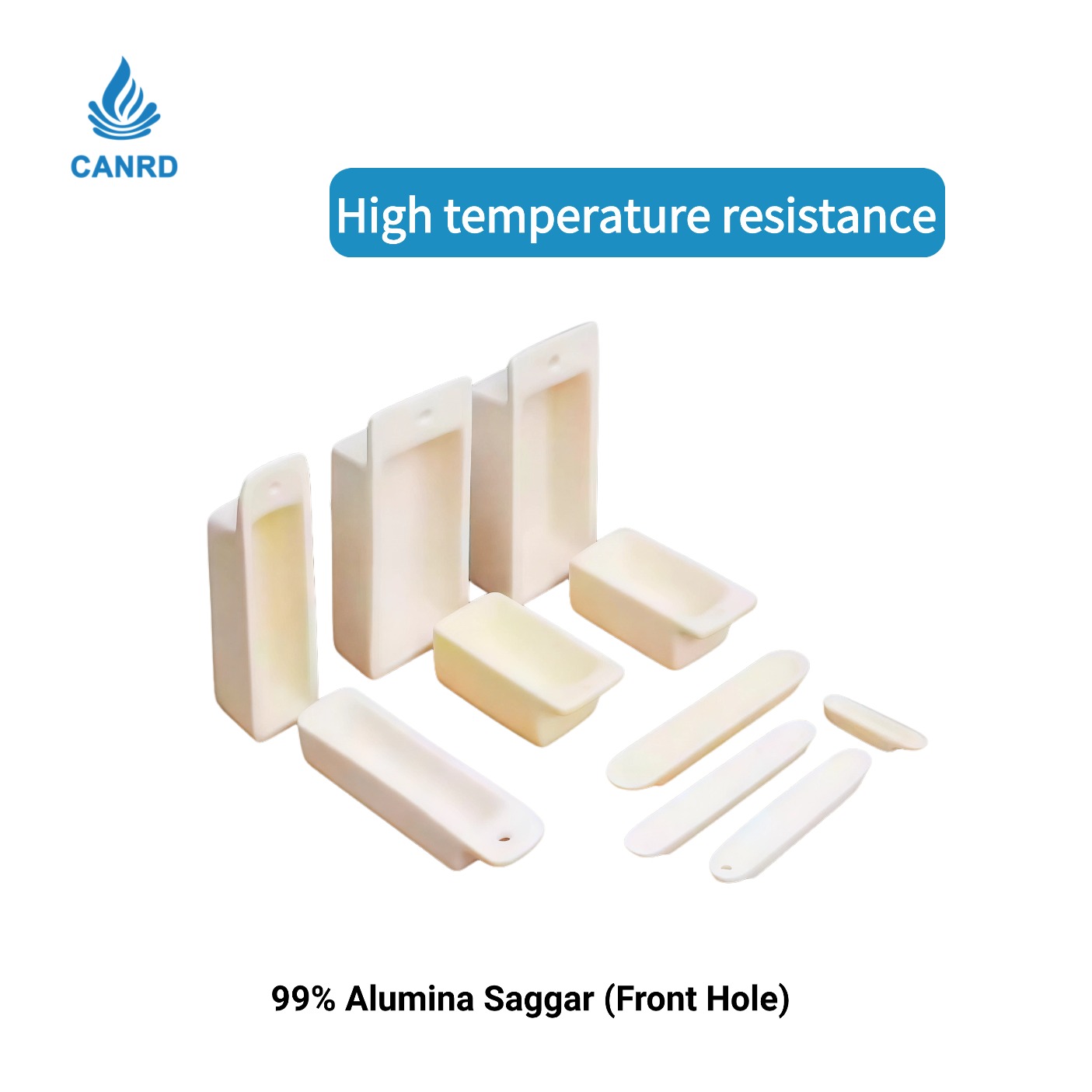

99% Alumina Saggar (Front Hole)
99% Alumina Saggar (Front Hole)
99% Alumina Saggar (Front Hole)
99% Alumina Saggar (Front Hole)
99% Alumina Saggar (Front Hole)

99% Alumina Saggar (Front Hole)

$4.83
Model:
MA-CM-SI-0005
item_No
Specifications
Price
MA-CM-SI-000501
73*30*22 front end with holes
$4.83

Details

This 99% alumina saggar, featuring a front hole design, is developed as a high-temperature sintered container for laboratory and research applications. Manufactured via slip or die casting and fired at 1800°C, the dense corundum body offers reliable thermal stability up to 1600°C. Available in multiple dimensional variants, each with a front-end opening, this saggar is suited for heat-treating powders, small components, or samples under controlled atmospheres. To ensure service life, it is recommended to pre-bake at 105°C to remove moisture and to follow specified heating and cooling rates—below 5°C/min under 1200°C and below 4°C/min above that. Direct flame or torch heating should be avoided to prevent thermal shock. The included cover functions primarily as a dust shield rather than an airtight seal. Custom dimensions are supported, with the understanding that customized items are non-returnable unless defective.

Customization supported

Customized products are non-refundable and non-exchangeable unless there is a quality issue.

1. The corundum boat is made using a slip casting/die casting process and fired at 1800℃. Slight dimensional errors may occur.

2. High temperature resistance up to 1600℃.

3. Before first use, please bake in an oven at approximately 105℃ for 120 minutes to remove moisture.

4. Heating or cooling rates should not be too rapid. Temperature changes below 1200℃ should be <5℃/minute, and above 1200℃ should be <4℃/minute. For cooling, it is recommended to use electrical temperature control.

5. Do not use a spray gun, acetylene torch, or alcohol lamp for direct heating to avoid uneven heating and cracking.

6. The covered corundum boat serves as a dustproof cover; the cover is not airtight. Please note.





Product Photos
