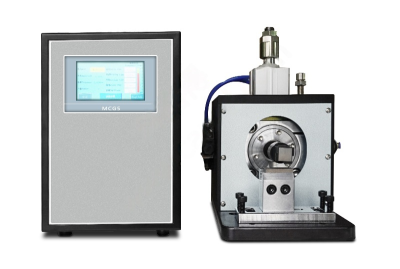

Ultrasonic Metal Welding Machine (2000 W)

Name: Ultrasonic Metal Welding Machine (2000 W)
Brand: Canrd
Availability: InStock

Model：

CAN-WEL21-2000ST

Applied range：

Itis mainly composed of ultrasonic generator, transducer, mold, pneumatic parts, frame, etc. The working principle is that the transducer converts the ultrasonic frequency high-power oscillation signal into mechanical energy of the corresponding frequency, and applies it to the interface of the metal sheet to be welded, so that the metal sheet is instantaneously heated, and then the particles in the metal lattice are activated, so that the molecules at the metal sheet are interpenetrated and welded together. The equipment is used for welding between aluminum foil and aluminum tabs, copper foil and copper-plated nickel or nickel tabs.

Date issued：

2024-12-26 00:33:29

Equipment Size：

Headsize: L480mm * W200mm * H380mm, generator size: L550mm * W300mm * H550mm

Weight：

40kg

Details

概要

仕様

詳細

This ultrasonic metal welding machine is designed for high-precision joining in advanced battery manufacturing lines, including prismatic aluminum case, cylindrical, pouch cell, and solid-state battery production. Operating at 2000 W, the CAN-WEL21-2000ST delivers consistent weld quality for metal foils and tabs, supporting dry electrode preparation and metal lithium battery assembly. Its ultrasonic technology enables cold welding, minimizing thermal damage to sensitive electrode materials while achieving reliable electrical and mechanical connections. This equipment is commonly integrated into glovebox stacking lines and zinc-ion battery assembly processes, where controlled environments and repeatable weld performance are critical. Suited for both R&D and small-scale production, the machine offers stable power output and straightforward operation, making it a practical tool for laboratories and pilot lines exploring next-generation energy storage materials.

generator size	L550mm * W300mm * H550mm
Equipment noise	When measured at a distance of 1m from the outer wall of the equipment, the noise of the equipment is less than 75dB during normal operation. There is no corrosive gas, liquid or explosive gas on site
Air Source	Pressure 0.2~0.5MPa
bearing at place of origin	≤ 600kg/m2
Equipment weight	40kg
Operating Environment	Temperature: 20±5 ℃; Humidity: 60% RH;
Power	regular Power 2000W
Head size	L480mm * W200mm * H380mm
power supply	220V/50Hz

welding pure aluminum strip	welding within 0.010~0.015mm20 layers of 0.08~0.2mm + pure aluminum foil
Welding head standard	Welding head is made of imported powder alloy, welding spot height is 0~50mm, upper welding head straight weave or rice weave, lower die net weave. The height of the welding surface from the welding head is adjustable from 0 to 50mm, and the welding head can use 4 welding surfaces
Welding area	33mm, 44mm (optional and customizable)
welding surface life	≥ 100000 times (normal welding use)
welding pure nickel strip	welding within 0.010~0.015mm20 layers of 0.08~0.2mm + pure aluminum foil
