Copper Mesh

Name: Copper Mesh
Brand: Canrd
Price: 60.41 USD
Availability: InStock

$60.41

アイテム番号:MA-EN-CU-001801

仕様

✓ 選択中: Wire diameter 60um 150mesh 1m2 copper

数量

品質保証

工場直販

世界規模の配送

Details

概要

仕様

詳細

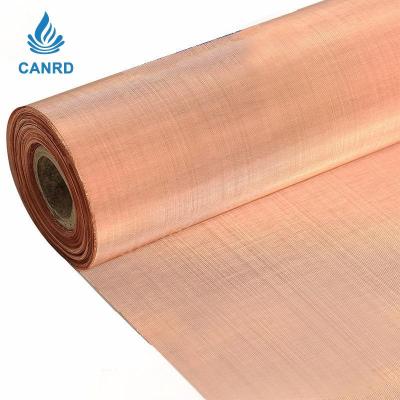

This copper mesh, available in grades such as purple copper (≥99.95% purity), phosphor copper (90%), and brass (65%), is designed for use as a current collector or electrode substrate in battery research and energy material experiments. It offers a range of mesh sizes from 100 to 400 mesh, with corresponding wire diameters and thicknesses optimized for different filtration, support, or conductivity requirements. For example, a 200 mesh variant with a 50 μm wire diameter provides a balanced open area and mechanical stability, while finer 400 mesh options with 28 μm wire suit high-resolution electrochemical setups. Such structural flexibility enables precise control over electrolyte flow and active material loading. Suitable for laboratory-scale testing and prototype development, this product supports studies in lithium-ion, sodium-ion, or other emerging battery chemistries where uniform current distribution and reliable electrical contact are critical.

Purple copper has a purity of over 99.95%, phosphorus copper has a purity of 90%, and brass has a purity of 65%

100 mesh thickness 0.2 mesh 0.15mm

400 mesh thickness 0.06-0.067 mesh size 0.04mm

200 mesh thickness 0.1 mesh 0.077mm

150 mesh thickness 0.12mm mesh is 0.1

300 mesh thickness 0.08-1mm mesh 0.045mm
