Canrd Coin Cell Test Clip Coin Cell Tester Fixture Lead Blue Coin Cell Testing Clamp

$10.57

アイテム番号:MA-CM-TO-003401

仕様

✓ 選択中: Canrd 2545 Button Test Clip - Front Clip 15cm

数量

品質保証

工場直販

世界規模の配送

Details

仕様

詳細

Product Introduction:

1. Test clip temperature range: -40℃~120℃;

2. Test cable temperature range: -20℃~80℃

3. Can be used with Blue Battery charging and discharging equipment and Canrd constant temperature chambers (if used with NEWAE equipment, the battery positive and negative terminals need to be reversed; the positive and negative terminal sequence of NEWAE test cables is the opposite of this product);

4. All female connectors for connecting to the test cabinet use GX16-4 female connectors;

5. Adaptable current ≤5A. If a higher current is required, new test cables need to be customized;

6. 1250 is the test clip model number, representing a test clip width of 12mm and a length of 50mm, which cannot be mounted on a guide rail;

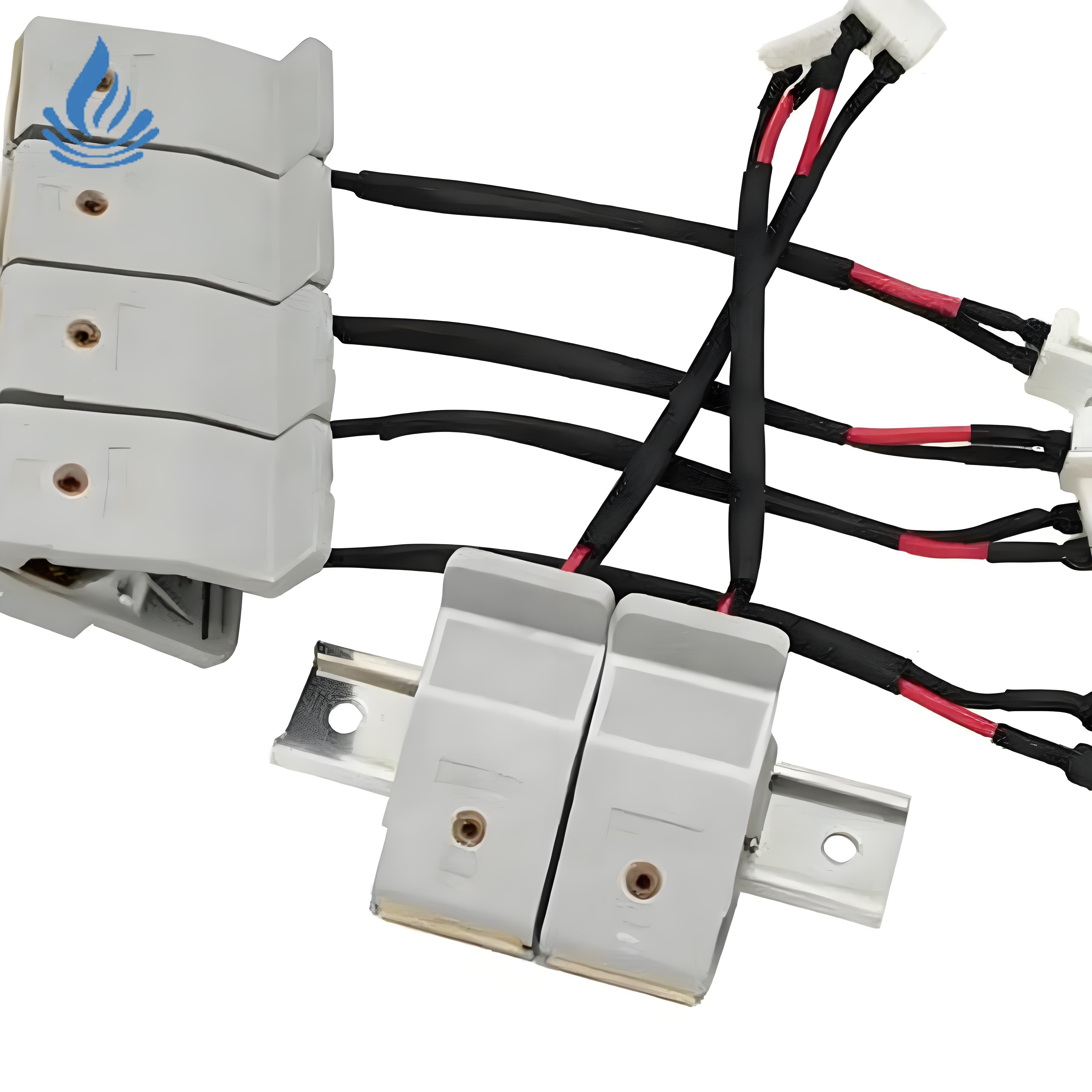

7. 2545 is the test clip model number, representing a test clip width of 25mm and a length of 45mm, which can be mounted on a guide rail, which needs to be purchased separately;

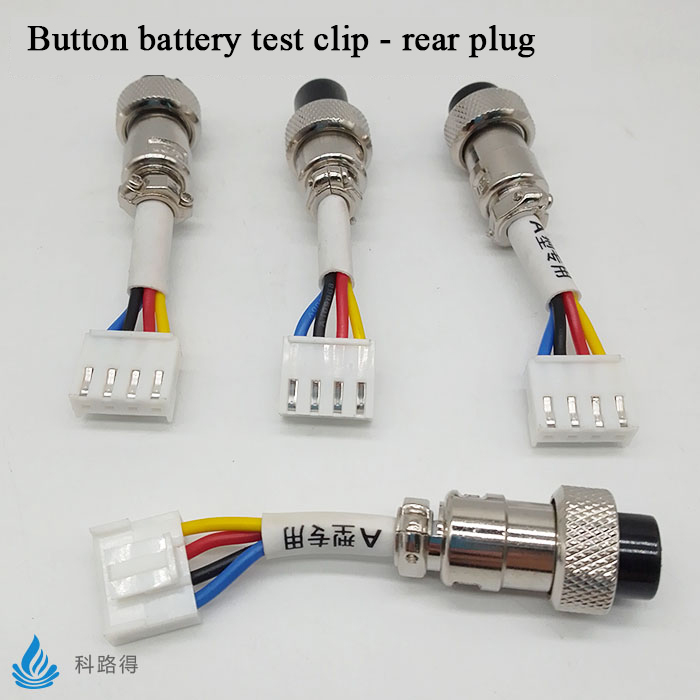

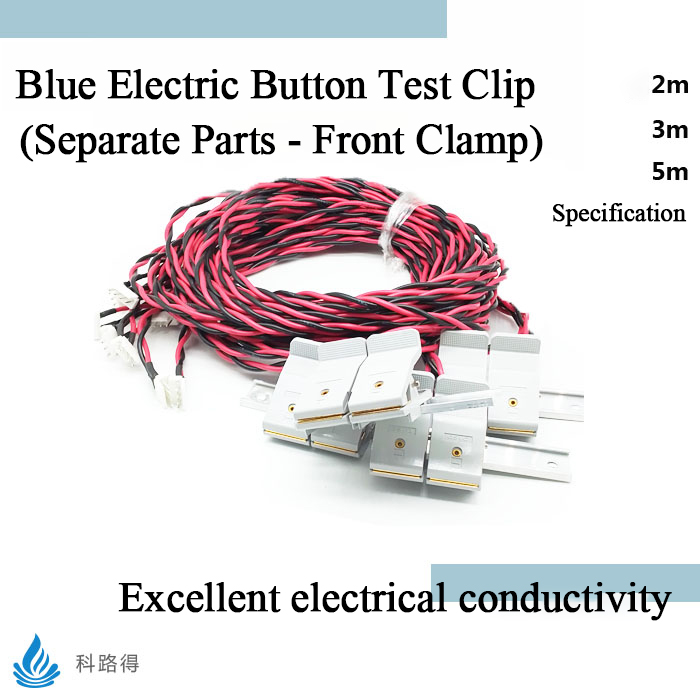

8. Canrd button battery test clips - two clips with 15cm/2m/3m/5m rear plugs, each with one guide rail;

9. Custom orders of different specifications start from 80 pieces.

Test clamp temperature range: -40℃~125℃
