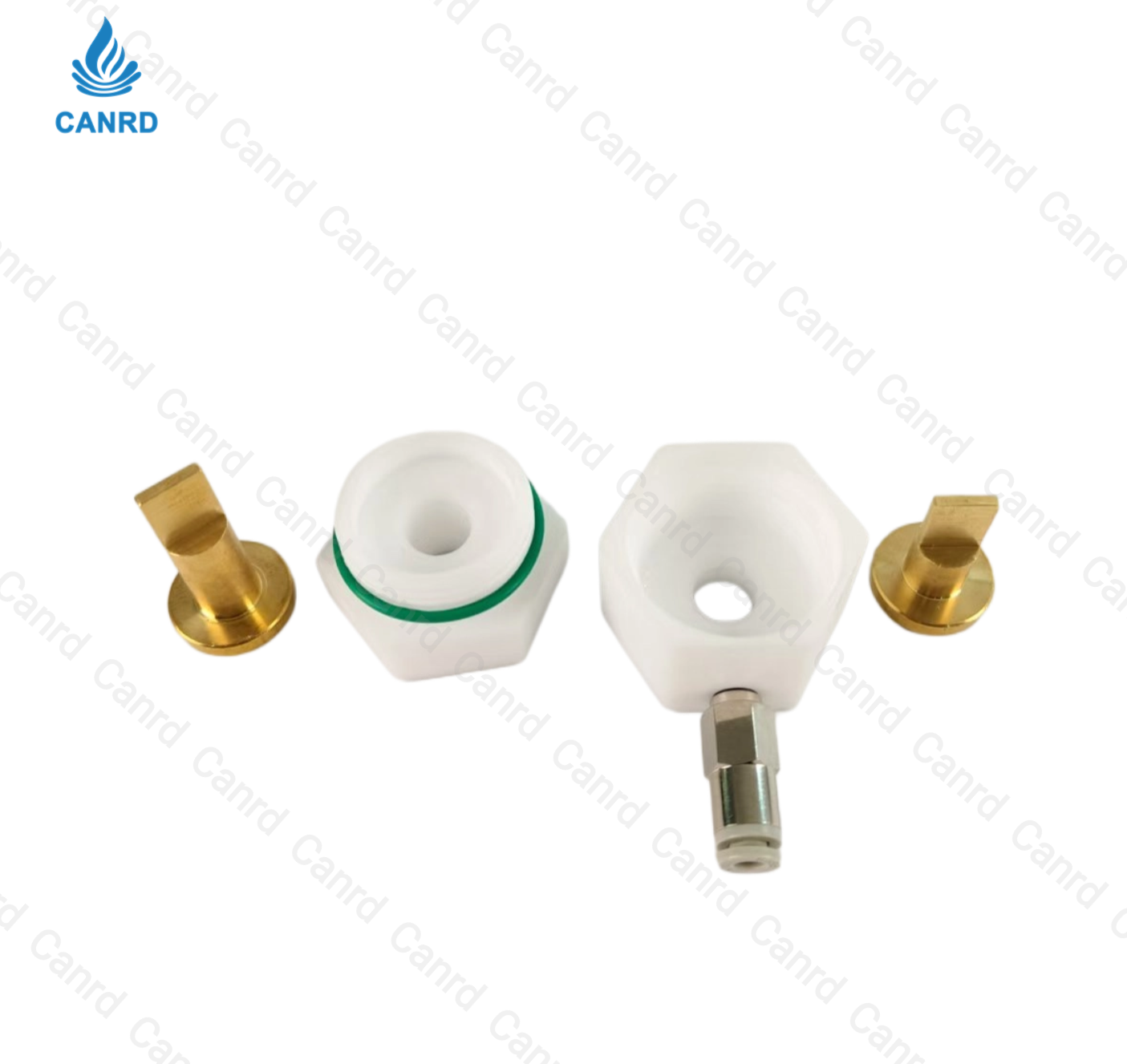

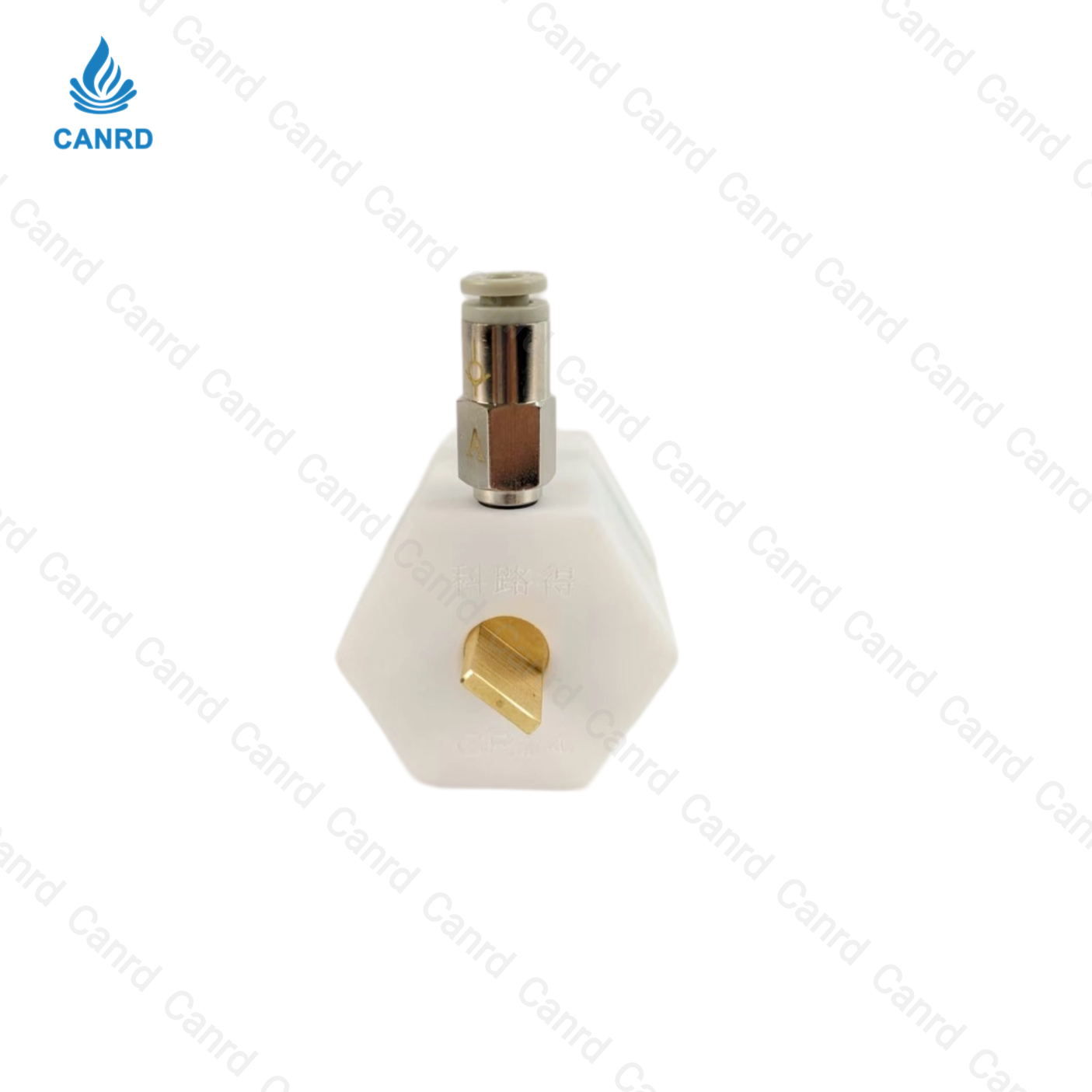

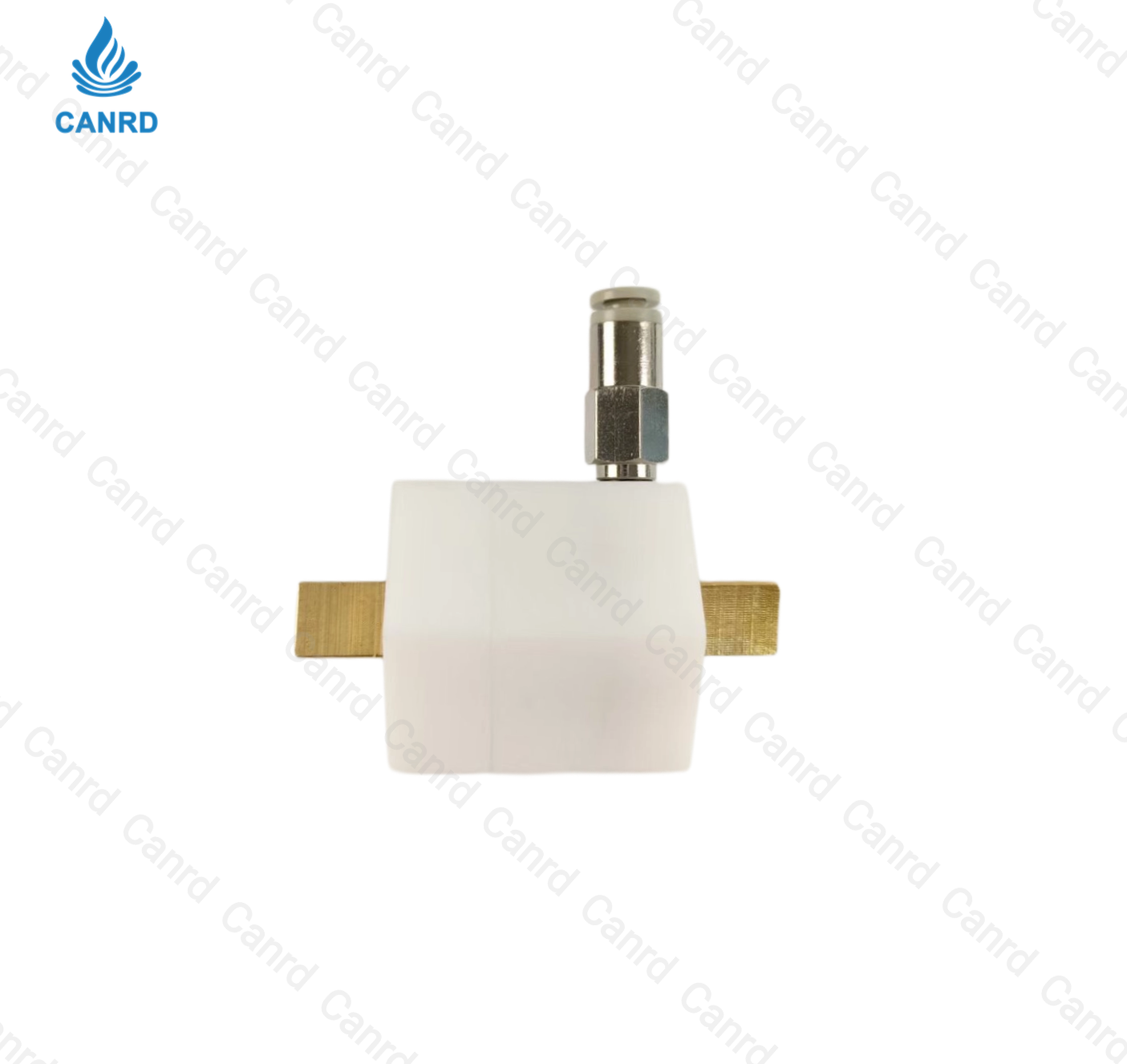

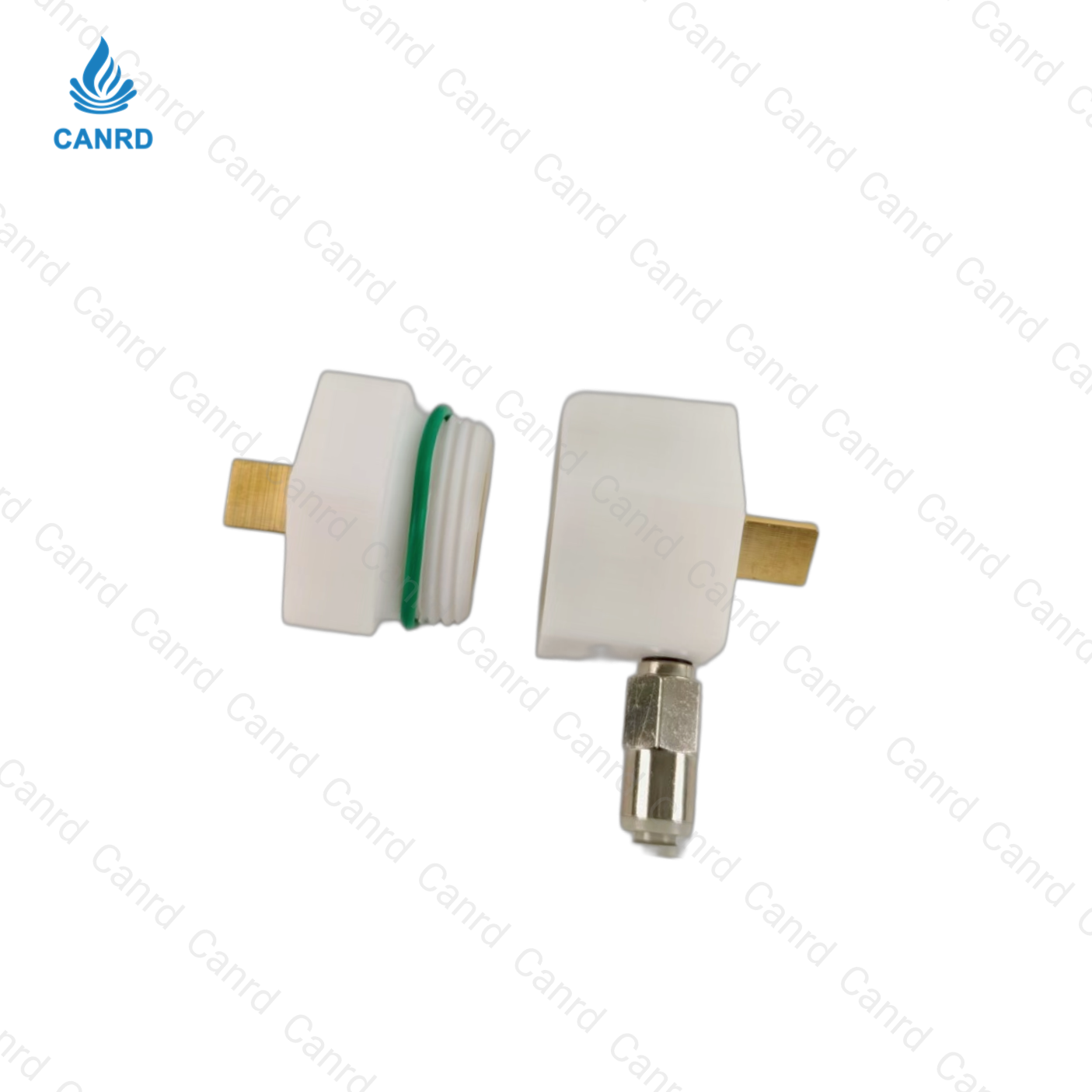

Split Coin Cell Test Fixture (Vented Type)

This split-type cell fixture is developed for stable and convenient electrochemical testing of coin cells, enabling reliable EIS, CV, and other measurements. Constructed from corrosion-resistant materials, it accommodates CR20 (cell thickness 1.5–3.5 mm) and CR24 (2–4 mm) formats, with customization available for other sizes. The design features a locking mechanism that creates a sealed chamber, while a one-way pressure relief valve safely vents internal gas when pressure exceeds a threshold. Its rotatable head allows adjustment for cells of varying thickness. Offered by Canrd under model CF-TES-SPR00000020C (CR20) and CF-TES-SPR00000024C (CR24), this fixture is suitable for battery research requiring consistent contact and controlled testing conditions.

1、Function: Mainly used for coin cell testing. After placing the cell in the fixture, EIS, CV, and other electrochemical tests can be conducted more conveniently and stably.

2、Applicable Range: CR20 (thickness 1.5–3.5 mm), CR24 (thickness 2–4 mm); other sizes can be customized.

3、Material: Made of corrosion-resistant materials.

4、Sealing & Safety: Once locked, the chamber provides sealing. When the internal gas reaches a certain pressure, it can be released through a one-way valve to prevent high pressure from affecting the chamber.

5、Adjustability: The fixture can be rotated at different angles to accommodate cells of varying thickness.
