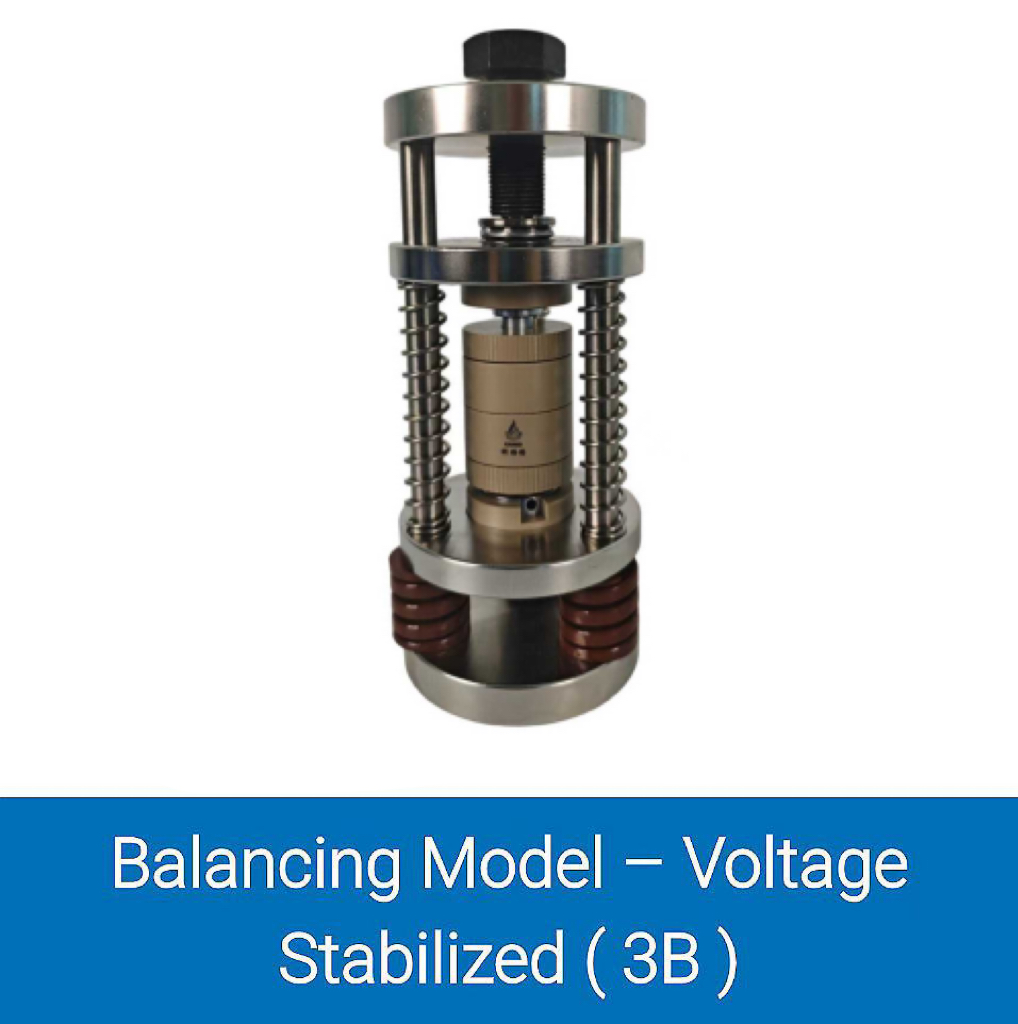

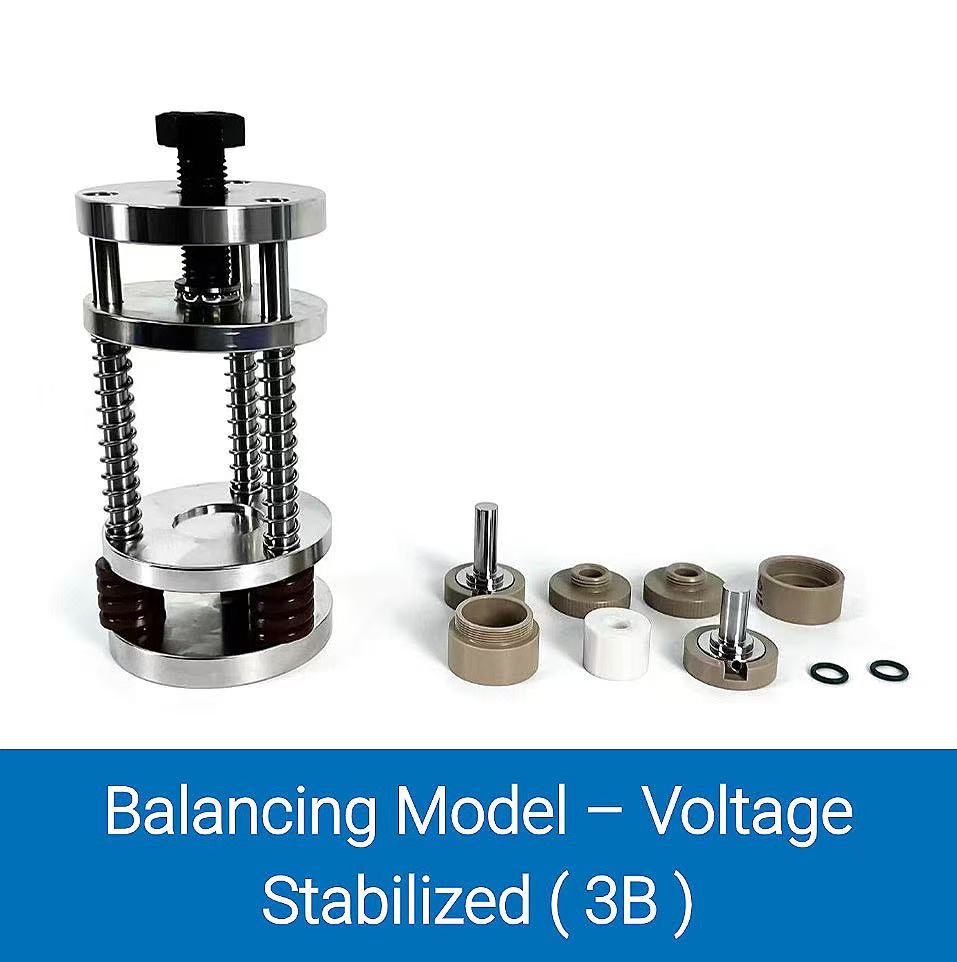

Solid-State Battery Mold – Voltage-Stabilized Model (3B)

This product, the Solid-State Battery Mold – Voltage-Stabilized Model (3B), is developed for advanced energy storage research, particularly in solid-state battery assembly and testing. Designed by Canrd, the mold features a robust construction with die steel poles and a ceramic core, housed in an outer dimension of φ88 mm by 210 mm, with a customizable working chamber diameter of φ10 mm. It supports a maximum load of 5 tons and operates reliably at temperatures up to 200°C, enabling controlled compaction and sintering processes. With a standard pressure capacity of 500 MPa (expandable to 1000 MPa), it is well-suited for laboratory R&D in lithium battery and new energy applications, where precise pressure stabilization is critical for electrode fabrication and electrolyte interface studies. This fixture offers a durable, high-performance platform for investigating solid-state cell performance under varying mechanical and thermal conditions.

Technical Parameters:

1、Specification: Outer dimension φ88mm × H210mm, working chamber φ10mm (customizable)
2、Pole material: Die steel
3、Core material: Ceramic
4、Application: New energy, lithium battery research, laboratory R&D
5、Max load: 5T
6、Max working temperature: 200℃

Remarks:
Pole diameter φ10mm; 0.8T ≈ 100MPa. Standard max pressure 500MPa (1000MPa optional).
