Details
The material needs to be vacuum sealed for storage
The material is prone to water absorption, and humidity control is required throughout the entire production process
The electrolyte used during testing is sodium ion electrolyte KLD-NC06
Baking conditions for electrode: Bake at 105 ℃ for 4 hours
Packaging, shipping and storage instructions：
Packaging requirements: Vacuum packaging with aluminum-plastic film, outer layer packaged in plastic bags
Storage requirements: Sealed, stored in a cool and dry place
Crystal structure: O3 phase(single crystal)
Sodium ion cathode electrode material, layered oxide, stable material, good dispersion effect, and good initial efficiency
Physical and chemical properties

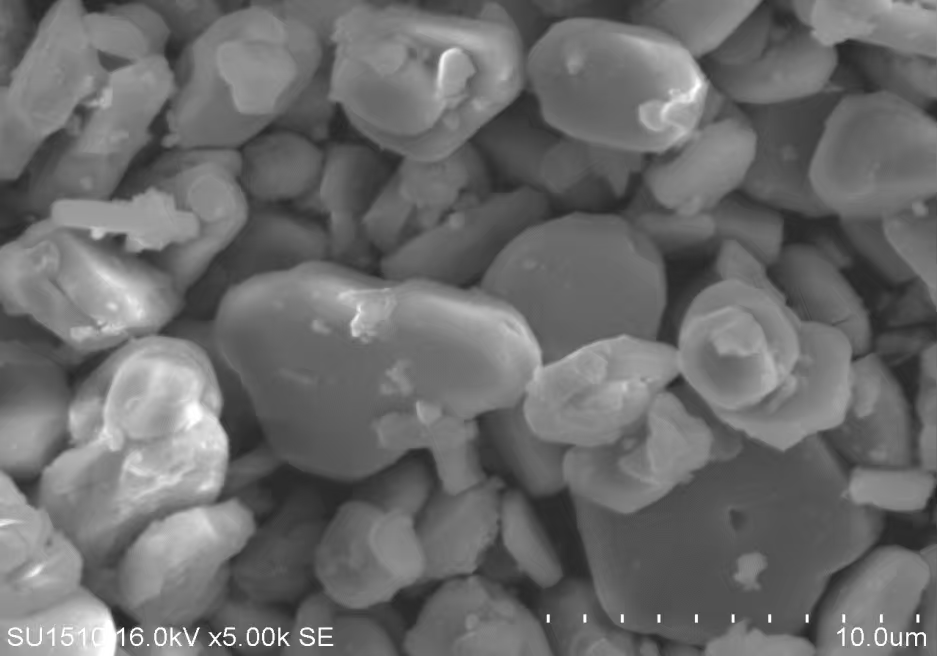

SEM：

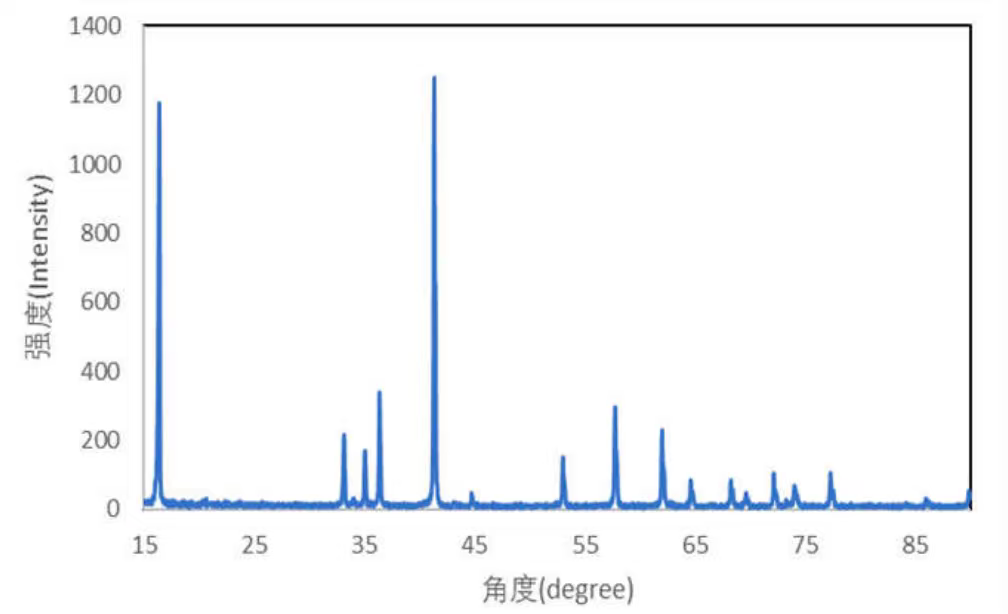

XRD

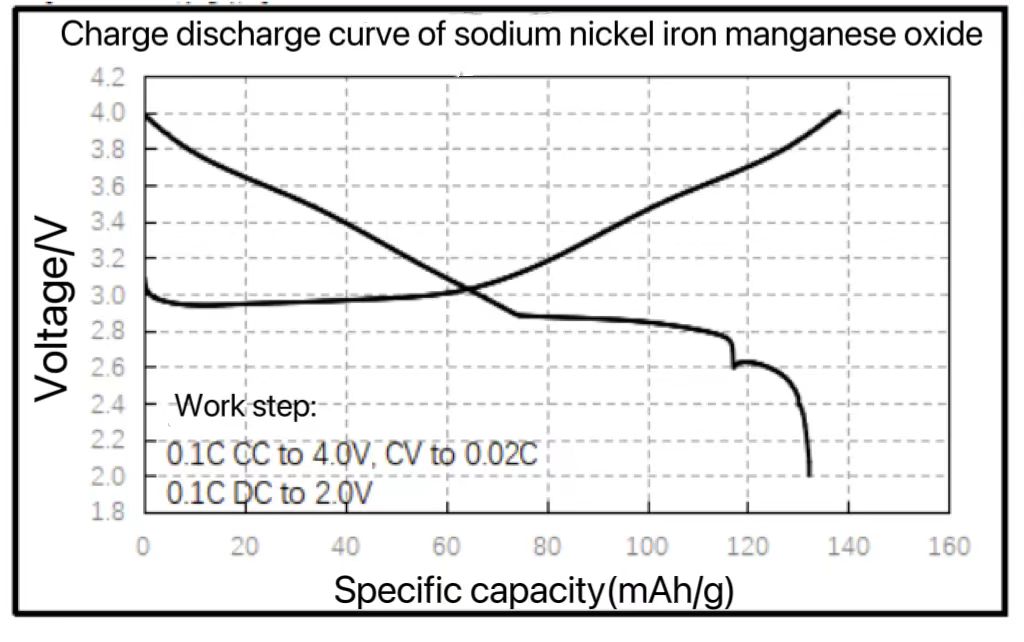

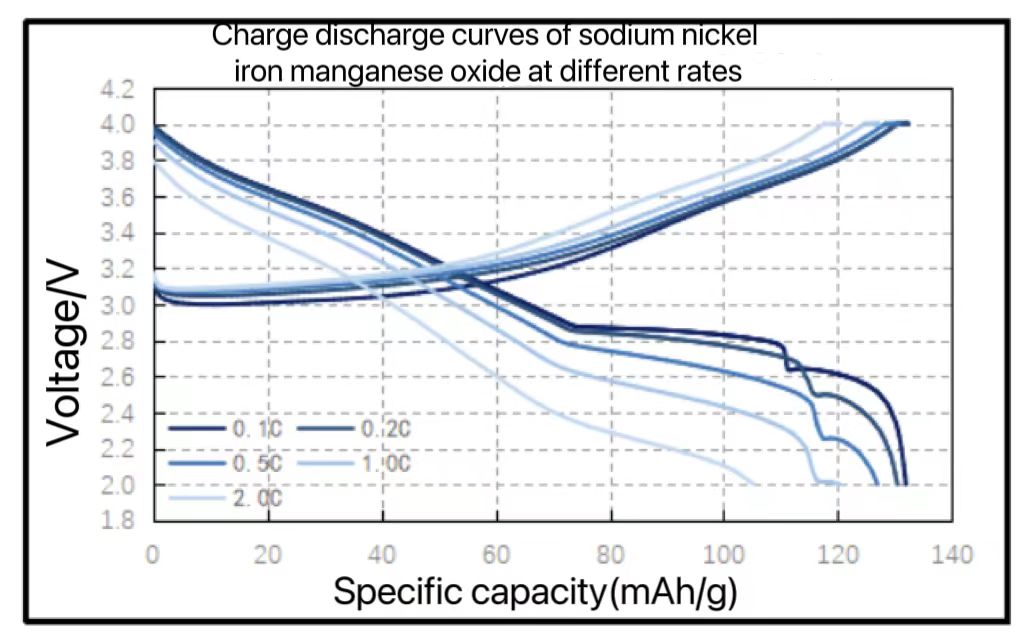

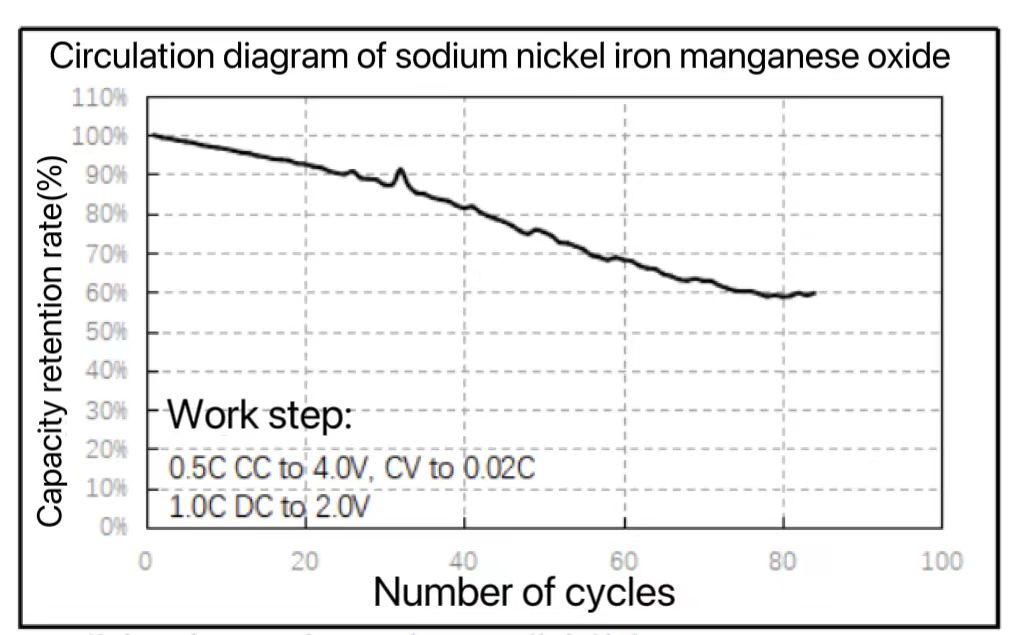

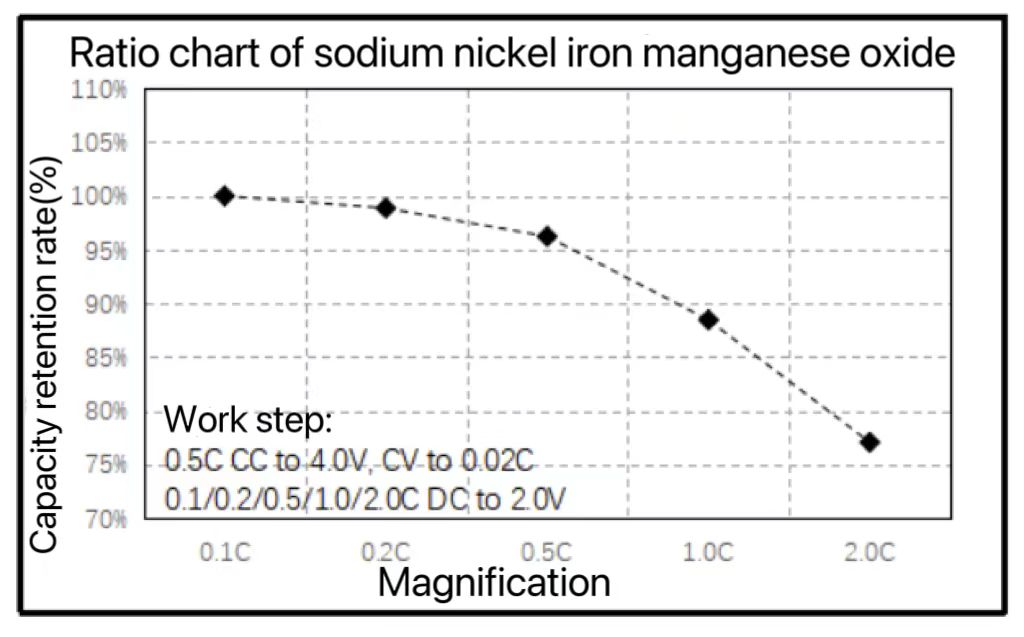

Half battery test:
CC - Constant current charging; CV - constant voltage charging; DC - Constant current discharge.
